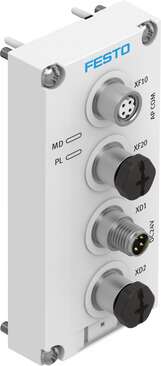

| Dimensions W x L x H | 42 mm x 91 mm x 30 mm |
| Connection position | Top |
| Diagnostics via LED | Diagnostics per moduleLoad power supply |
| Diagnose per internal communication | Load switch-offElectronics/sensors overvoltageLoad overvoltageElectronics/sensors undervoltageLoad undervoltage |
| Max. no. of valve positions | 12 |
| Max. no. of solenoid coils | 24 |
| Reverse polarity protection | yes |
| Module parameters | Configuration of voltage monitoring, load supply PLResponse in error state |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 16 mA |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Nominal operating voltage DC load | 24 V |
| Power failure buffering | 10 ms |
| Power failure buffering of load | 3 ms |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Permissible voltage fluctuations load | ± 10% |
| Max. power supply | 2 x 4 A (external fuse required) |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, type of connection | Plug |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Power supply, number of pins/wires | 4 |
| Voltage forwarding, function | Outgoing electronics/sensors and load |
| Voltage forwarding, connection type | Socket |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Voltage forwarding, number of pins/wires | 4 |
| Communication interface, connection type | 2x socket |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Communication interface, number of pins/wires | 4 |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, protocol | AP-COM |
| Communication interface, shielding | yes |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| KC characters | KC EMC |
| Max. cable length | 50 m system communication |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Storage temperature | -20 °C … 60 °C |
| Relative air humidity | 5 – 95 %Non-condensing |
| Protection against direct and indirect contact | PELVSELV |
| Note regarding operating voltage | SELV/PELV fixed power supplies requiredNote voltage drop |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted stateUnused connections sealed |
| Ambient temperature | -5 °C … 60 °C |
| Certification | RCM compliance markc UL us – Recognized (OL) |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Product weight | 76 g |
| Type of mounting | Screwed tightly |
| Housing material | PA-reinforced |
| Threaded sleeve material | Brass, nickel-plated |
| Note on materials | RoHS-compliant |
