| Width | 64.8 mm |
| Length | 107.3 mm |
| Reverse polarity protection | for operating voltage |
| Mounting position | Any |
| Diagnostics | Load supply undervoltage |
| Max. no. of valve positions | 32 |
| Valve manifold design | Valve sizes can be mixed |
| Max. no. of solenoid coils | 32 |
| Operating pressure | -0.09 MPa … 1 MPa |
| Operating pressure | -0.9 bar … 10 bar |
| Pilot pressure MPa | 0.3 MPa … 0.8 MPa |
| Pilot pressure | 3 bar … 8 bar |
| Intrinsic current consumption at load voltage | 30 mA |
| Intrinsic current consumption at operating voltage | 30 mA |
| Nominal operating voltage DC | 24 V |
| Protocol | I-PortIO-Link® |
| Corrosion resistance class (CRC) | 3 – High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 °C … 40 °C |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 170 g |
| IO-Link®, protocol version | Device V 1.0 |
| IO-Link®, communication mode | COM2 (38.4 kBd), COM3 (230.4 kBd) |
| IO-Link®, port class | B |
| IO-Link®, number of ports | 1 |
| IO-Link®, process data width OUT | 1 – 4 bytes |
| IO-Link®, minimum cycle time | Device 3.2 ms |
| Electrical connection 1, function | IO-Link® |
| Electrical connection 1, connection type | Plug |

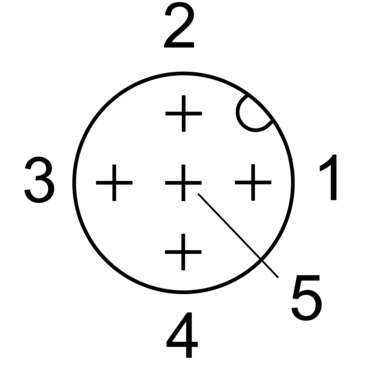

| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection for input 1, connection pattern | 00995383 |
| LED display (bus-specific) | 1 x communication status |
| Note on materials | RoHS-compliant |
| End plate material | PPA-reinforced |
