EVC491

Description

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating conditions

Ambient temperature [°C]

-25…90

Ambient temperature (moving) [°C]

-25…90

Storage temperature [°C]

-25…55

Storage humidity [%]

10…100

Other climatic conditions for storage according to stated class

1K22/ DIN 60721-3-1

Protection

IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g]

181.8

Dimensions [mm]

15.5 x 15.5 x 45

Moulded-body material

TPU

Material nut

brass, nickel-plated

Sealing material

Viton

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 5 Mio.
torsional strain	± 180 °/m

Remarks

conditioning at 93°C and 90% relative air humidity for 4 weeks

according to IEC 60079-0

Specially designed for use with DI602A

Pack quantity

1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm²

Electrical connection – socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm

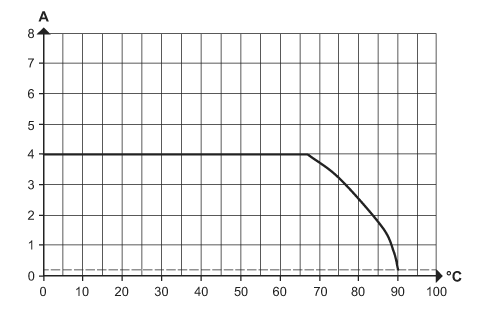

Diagrams and graphs
