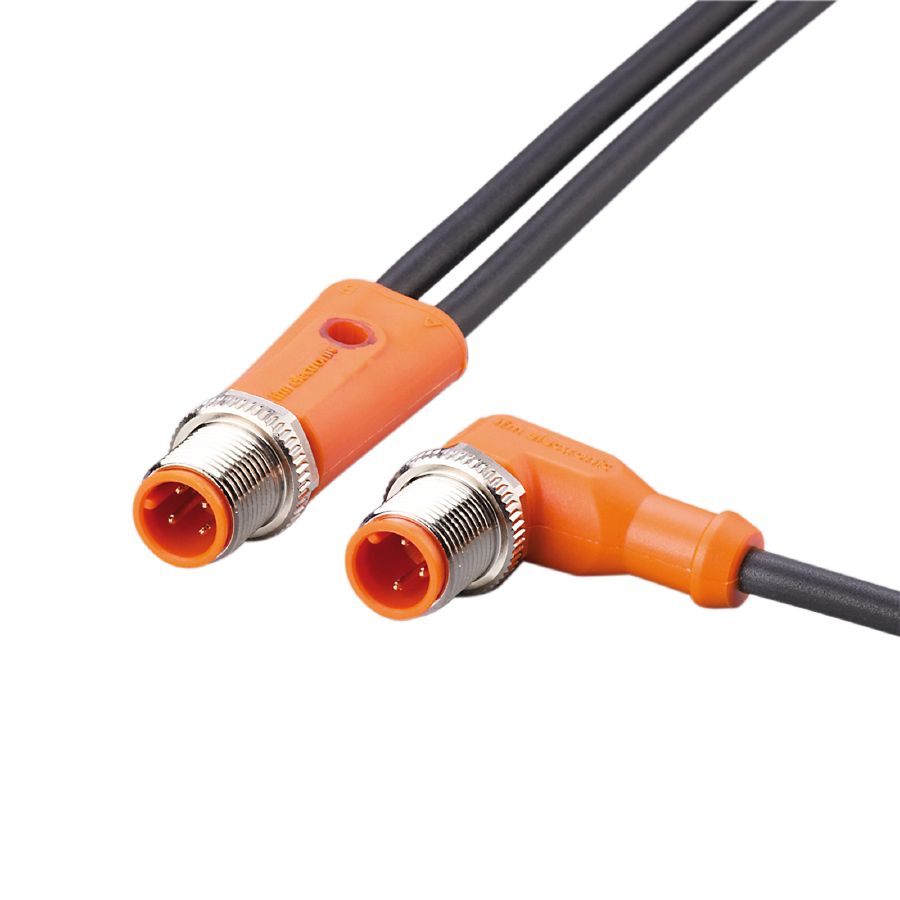

EVC507

  • Resistant to oils and coolants
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Vibration and shock resistant thanks to coupling ring with locking mechanism
  • Wide operating temperature range



SKU: EVC507

$196,60

Description

Application
Special feature Halogen-free
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -20…90
Ambient temperature (moving) [°C] -20…90
Storage temperature [°C] -25…55
Storage humidity [%] 10…100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 867
Moulded-body material TPU
Sealing material FKM
Remarks
Notes Please see the technical note under “Downloads”
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection – plug
Connector: M12; Moulded body: TPU, orange
Electrical connection – socket
Connector: M12; Moulded body: TPU, orange; Sealing: FKM



PDF data sheet
