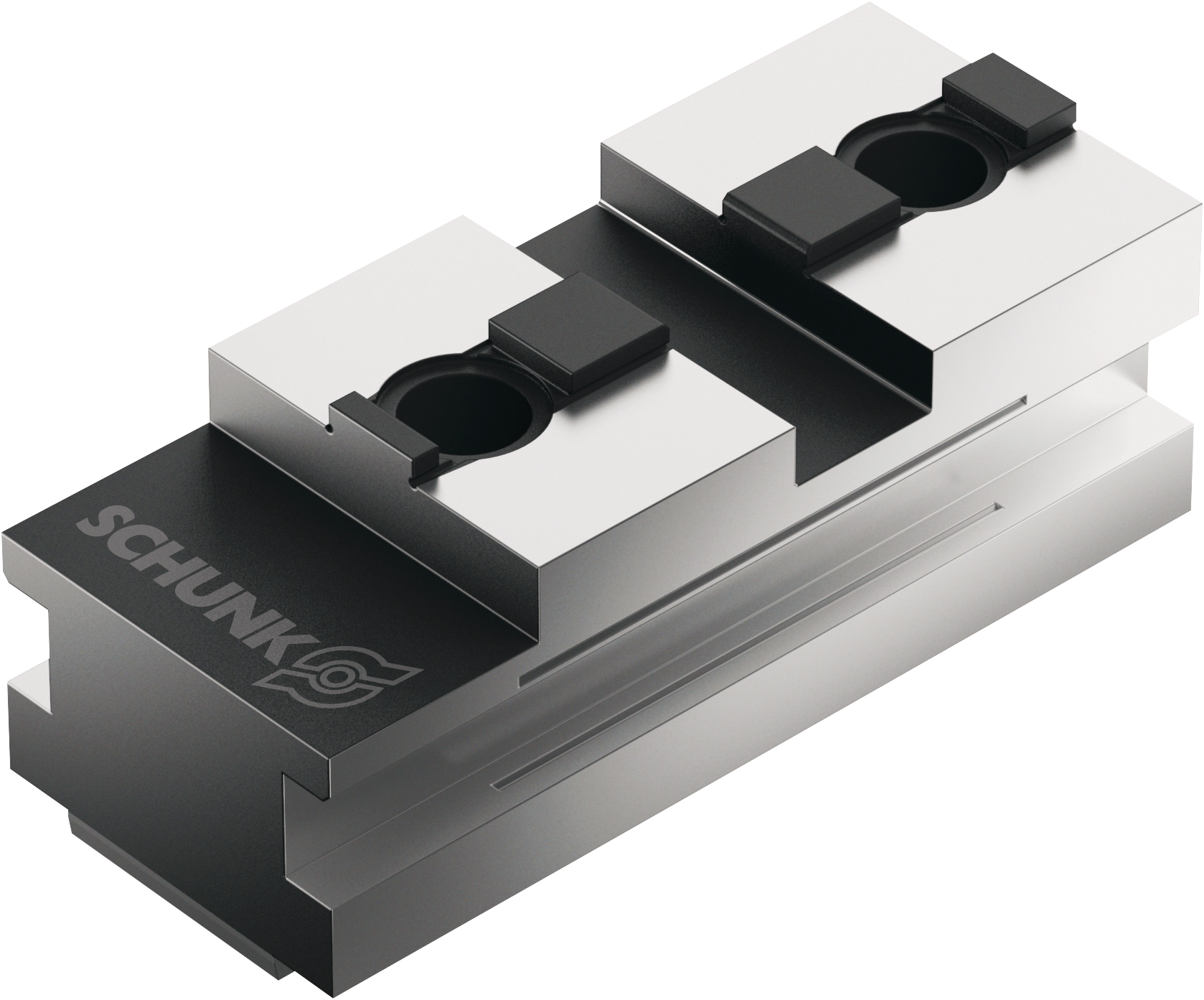

EWB-TG 210

Base Jaws

SKU: EWB-TG 210

Description

Description

EWB-TG 210, Base Jaws

  • Serration: Straight serration
  • Mounting: Tongue and groove
  • Groove width: 12.7 mm
  • Width of path: 7.9 mm
  • Delivery unit: 1 set = 3 pieces

Download now
2 MB
1 MB
442 KB
545 KB
278 KB
418 KB
601 KB

Product group Base Jaws
Mounting Tongue and groove
Serration Straight serration
Slot width N [mm] 12.7
Tab width S [mm] 7.9
Width B [mm] 45
Height H [mm] 33
Height H1 [mm] 30
Length L [mm] 86
Hole spacing b [mm] 44.5
Screws 1/2″
m/set [kg] 2.1

Cylindrical screws are not included in the scope of delivery
