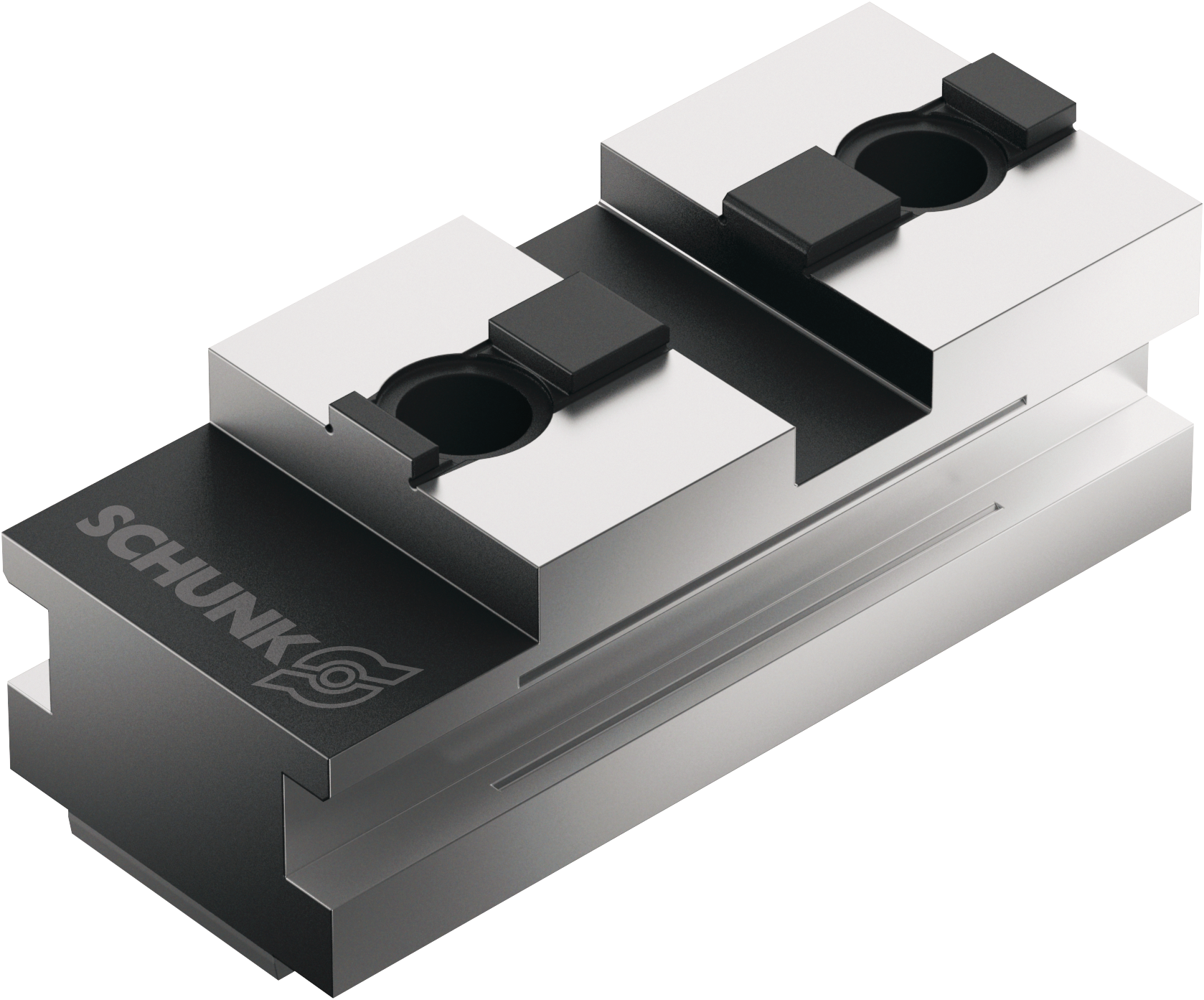

EWB-TG 630, Base Jaws
- Serration: Straight serration
- Mounting: Tongue and groove
- Groove width: 19.02 mm
- Width of path: 12.7 mm
- Delivery unit: 1 set = 3 pieces
EWB-TG 630, Base Jaws
Download now
2 MB 2 MB
1 MB 1 MB
442 KB 442 KB
545 KB 545 KB
278 KB 278 KB
418 KB 418 KB
601 KB 601 KB
Product group | Base Jaws |
---|---|
Mounting | Tongue and groove |
Serration | Straight serration |
Slot width N [mm] | 19.02 |
Tab width S [mm] | 12.7 |
Width B [mm] | 75 |
Height H [mm] | 61 |
Height H1 [mm] | 57 |
Length L [mm] | 203 |
Hole spacing b [mm] | 76.2 |
Screws | 3/4″ |
m/set [kg] | 15.4 |
