Description

Applications

Level detection for almost all liquid media
Individual design and corrosion-resistant materials make the products suitable for a broad range of applications
Chemical industry, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plants

Special features

Process- and procedure-specific production
Operating limits:
– Operating temperature: T = -196 … +450 °C
– Operating pressure: P = Vacuum up to 400 bar
Wide variety of different process connections and materials
Mounting of level sensors and guided wave radars possible as an option

Description

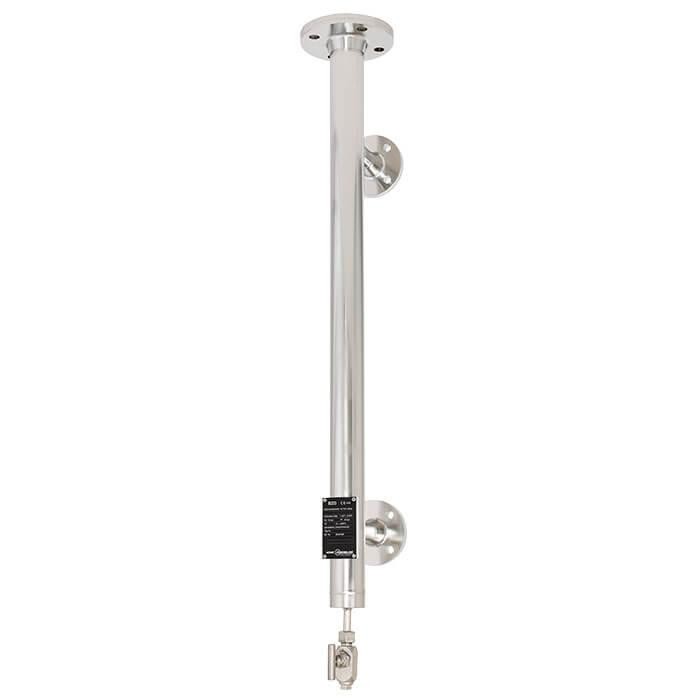

The external chamber model BZG consists of an external chamber vessel that is mounted laterally to a vessel using at least 2 process connections (flange, thread or weld stub). Through this type of arrangement, the level in the external chamber corresponds to the level in the vessel.

The level is measured by a measuring instrument inserted additionally in the external chamber, for example model FLR or FLS, or by a guided wave radar.
