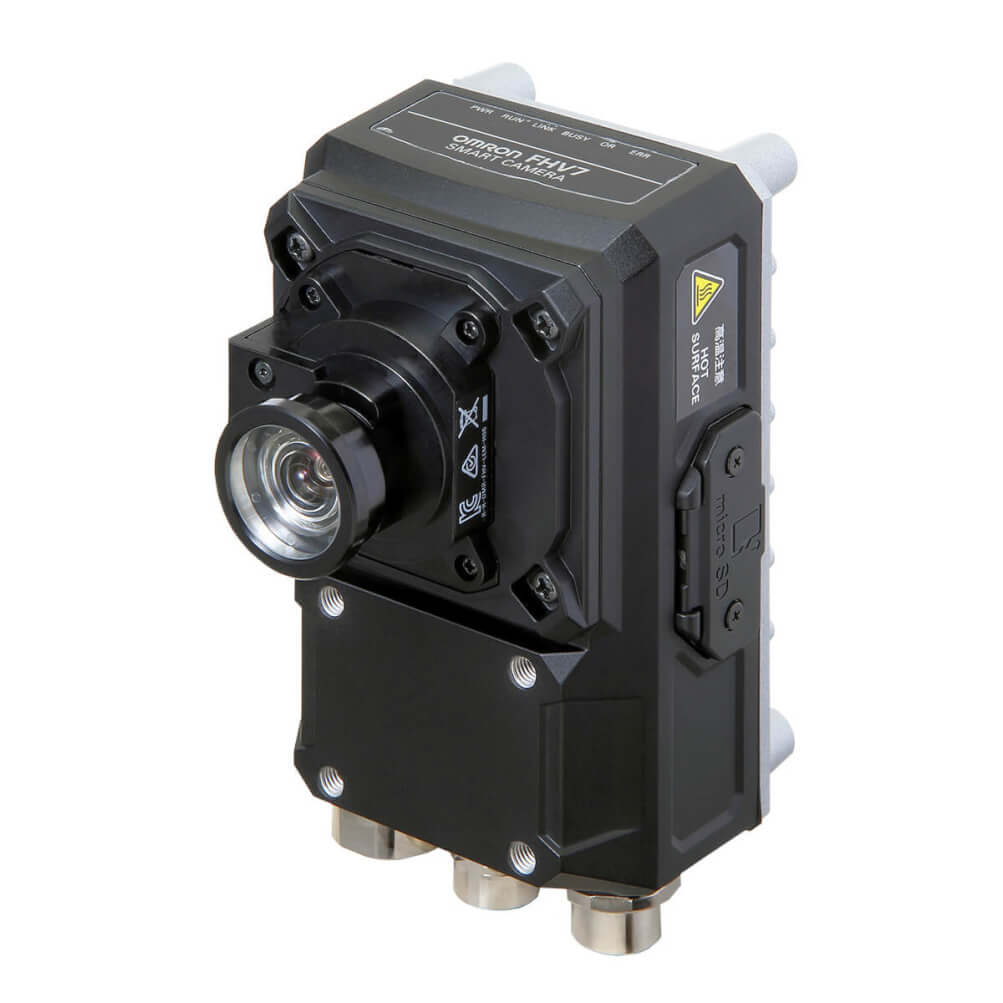

FH Vision Smart Camera, high performance, color type, 3.2 Mpix resolution, 3.45 µm pixel size, 1/1.8″ chip size, global shutter, high speed liquid lens module, focal length 6mm, 24 VDC, IP40, pre-assembled
| Number of pixels | 3.2 MP |
| Camera with lens | ✔ |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Communication option(s) | EtherCAT Slave |
| Focal length | 6 mm |
| Focus distance | 102-650 mm |
| Autofocus | ✔ |
| Camera family | FHV |
| Camera type | Color |
| Frame rate | 55 fps |
| Illumination | None |
| Image width | 2048 pixels |
| Image height | 1536 pixels |
| Pixel size | 3.45 µm |
| Shutter type | Global |
| Image sensor format | 1/1.8″ |
| Image sensor type | Other |
| Lens mount | C-mount |
| Lens type | Liquid |
| Optics class | N/A |
| Application | 2D Robot guidance, Bead inspection, Code reading, Code verification, Color inspection, Counting, Defect inspection, Measurement inspection, OCR / OCV, Presence / Absence |
 |
FHV-LEM-S06 | FHV7 lens module, 6 mm focal length |
|
|
FHV-LEM-S09 | FHV7 lens module, 9 mm focal length |
|
|
FHV-LEM-S12 | FHV7 lens module, 12 mm focal length |
|
|
FHV-LEM-S16 | FHV7 lens module, 16 mm focal length |
|
 |
FHV-LTM-MC | FHV7 illumination module, multi color Red Green Blue, IR, includes protection window |
|
 |
FHV-LTM-W | FHV7 illumination module, white, includes protection window |
|
 |
FHV-SDU30 | FHV7 extended data unit, EtherCAT interface |
|
 |
FHV-XDF | FHV7 Diffusion filter |
|
 |
FHV-XHD-L | FHV7 Waterproof hood, long, for 3Z4S-LE SV-H series |
|
 |
FHV-XHD-LEM | FHV7 Waterproof hood, for motorized lens modules |
|
 |
FHV-XHD-S | FHV7 Waterproof hood, short, for 3Z4S-LE SV-V series |
|
 |
FHV-XMT-7 | Fixture for FHV7 |
|
 |
FHV-XPL | FHV7 Polarization filter, for visible light |
|
 |
FHV-XPL-IR | Polarized Light Filter, for visible and IR light |
|
