| Display range | 0 bar … 6 bar |
| Display range | 1 psi … 87 psi |
| Symbol | 00991463 |
| Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 63 |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |

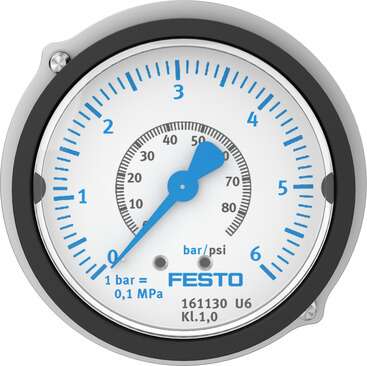

| Structural design | Bourdon tube pressure gauge |
| Type of mounting | Front panel mounting |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 MPa … 0.6 MPa |
| Operating pressure | 0 bar … 6 bar |
| Operating pressure | 0 psi … 87 psi |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 1 |
| Degree of protection | IP43 |
| Temperature of medium | -20 °C … 60 °C |
| Ambient temperature | -20 °C … 60 °C |
| Note on materials | RoHS-compliant |

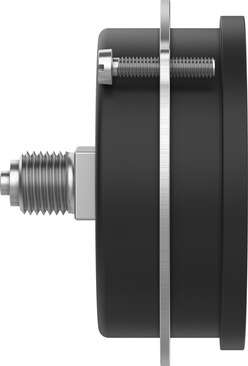

| Connection position | Centered on rear side |
| Pneumatic connection | G1/4 |
| Materials in contact with the media | Brass |
| Material of screwed trunnion | Brass |
| Housing material | ABS |
| Inspection window material | SAN |
| Fastening ring material | Steel |
| Housing colour | Black |
| Product weight | 120 g |
| Information on operating and pilot media | No acetyleneNo oxygen |
| Scale | Double scalebar (außen)psi (internal) |
