Float switch

Description

Applications

Combined level and temperature measurement of liquids in machine building
Control and monitoring tasks for hydraulic power packs, compressors and in cooling systems

Special features

Media compatibility: Oil, water, diesel, refrigerants and other liquids
Level: Up to 3 switching outputs, freely definable as normally open, normally closed or change-over contact
Temperature: 1 bimetal temperature switch or Pt100/Pt1000, accuracy: Class B
Potential-free switching reed contacts

Description

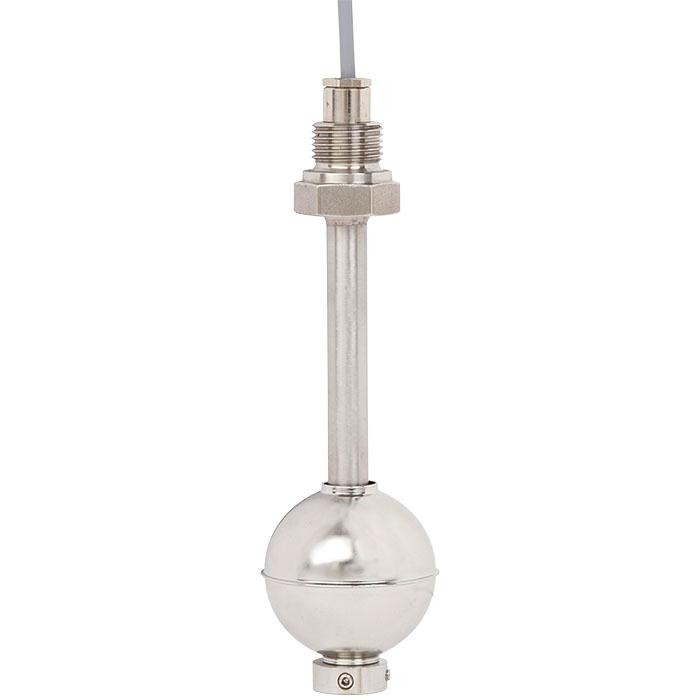

The model RLS-3000 float switch with temperature output combines the recording of the level and temperature of liquids in a single measuring point. The stainless steel used is suitable for a multitude of media, such as, for example, oil, water, diesel and refrigerants.

Measuring principle
A permanent magnet built into the float triggers, with its magnetic field, the potential-free reed contacts built into the guide tube. The triggering of the reed contacts by the permanent magnet is contact-free and thus free from wear.

Depending on customer wishes, the switching functions of normally open, normally closed or change-over can be realised for the defined liquid level.

The additional temperature output enables the medium temperature to be monitored by means of a preconfigured bimetal temperature switch or a Pt100/Pt1000 resistance signal.
