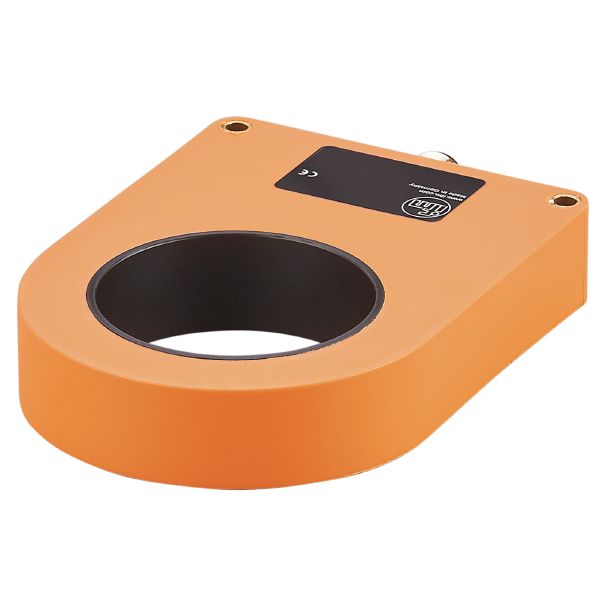

I7R217

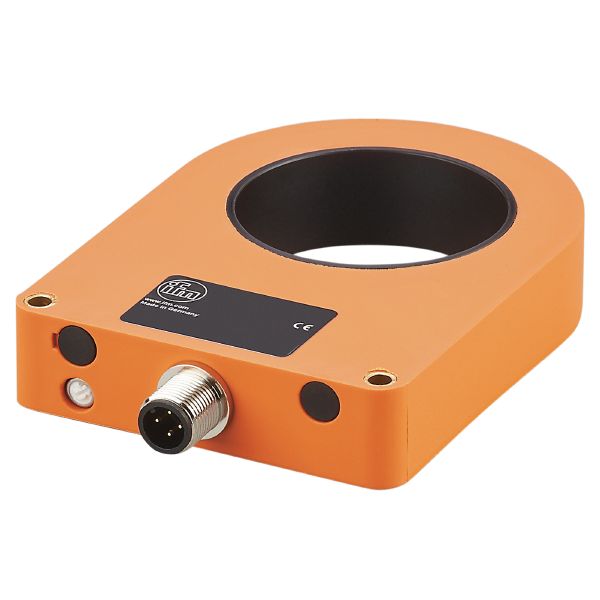

I7R217 - Image 2

I7R217 - Image 3

I7R217

Static operating principle
Reliable detection of objects with very small diameters
Very short response time
Easy adjustment of pulse stretching and sensitivity via potentiometer
Output function normally open / normally closed programmable

SKU: I7R217

$202,10

Description

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Housing	circular
Dimensions [mm]	110 x 80 x 20

Application

Operating principle	static

Electrical data

Operating voltage [V]	10…35 DC
Current consumption [mA]	< 11
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Resolution of steel ball (diameter) [mm]	6
Max. part speed [m/s]	35

Response times

Pulse stretching [ms]	10…150
Pulse stretching adjustable	yes
Max. fall time [ms]	10
Response time [ms]	< 0.5

Operating conditions

Ambient temperature [°C]	-25…70
Protection	IP 67

Tests / approvals

MTTF [years]

646

UL approval

Ta	-25…70 °C
Enclosure type	Type 4X (indoor use only) / 12 and 13
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	226.5
Housing	circular
Dimensions [mm]	110 x 80 x 20
Inside diameter [mm]	51
Materials	housing: PA; ring: POM

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

Connection	Connector: 1 x M12; coding: A

I7R217-00_EN-US

Datasheet
EN PDF
