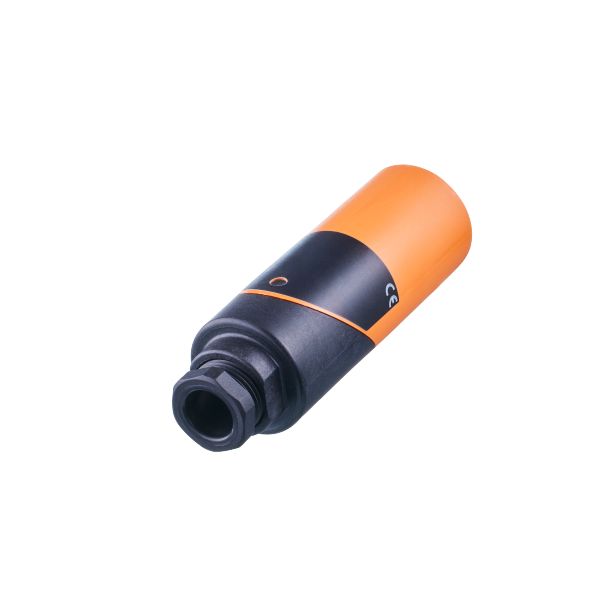

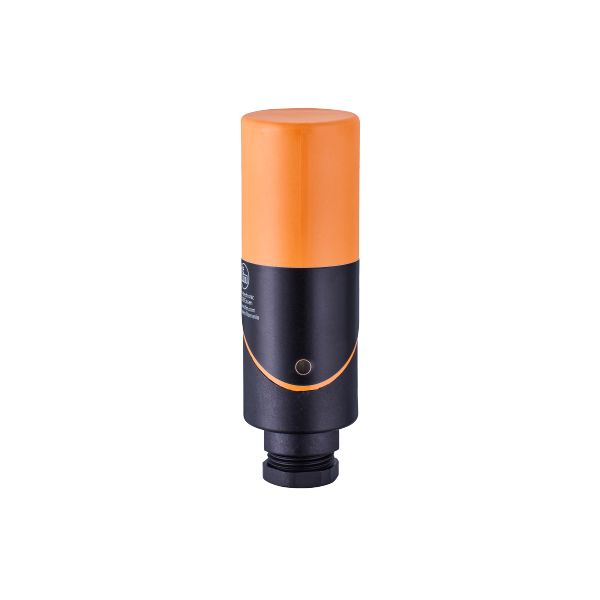

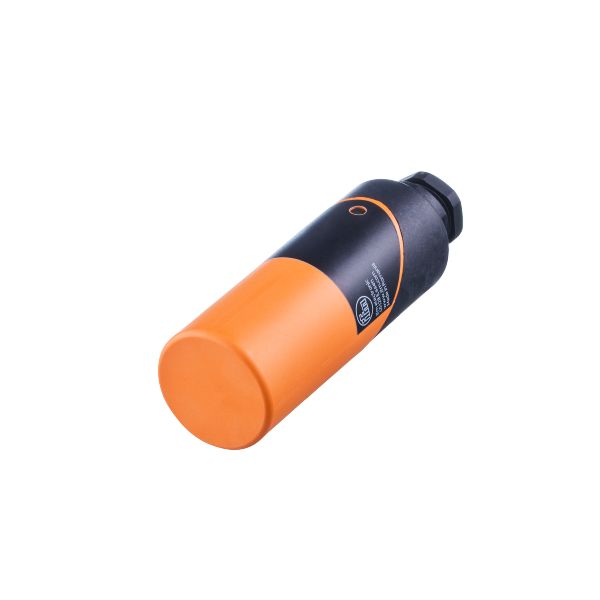

IB5133

  • Very long sensing range
  • Output function normally open / normally closed programmable
  • With terminal chamber that can be rotated by 90°
  • Smooth plastic housing to protect against deposits
  • PBT housing resistant against pickling solutions



SKU: IB5133

$94,60

Description

Product characteristics
Electrical design PNP
Output function normally open / normally closed; (selectable)
Sensing range [mm] 30
Housing cylindrical
Dimensions [mm] Ø 34 / L = 98
Electrical data
Operating voltage [V] 10…36 DC
Current consumption [mA] 15; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 350
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 30
Real sensing range Sr [mm] 30 ± 10 %
Operating distance [mm] 0…24.3
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Switch point drift [% of Sr] -10…10
Operating conditions
Ambient temperature [°C] -25…80
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1824
Mechanical data
Weight [g] 187
Housing cylindrical
Mounting non-flush mountable
Dimensions [mm] Ø 34 / L = 98
Materials PBT; end cap: PC
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
Mounting clamps: 1
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: …2.5 mm²; Cable sheath: Ø 7…13 mm; Cable gland: M20 X 1.5
IB5133-00_EN-US

Datasheet
EN PDF
