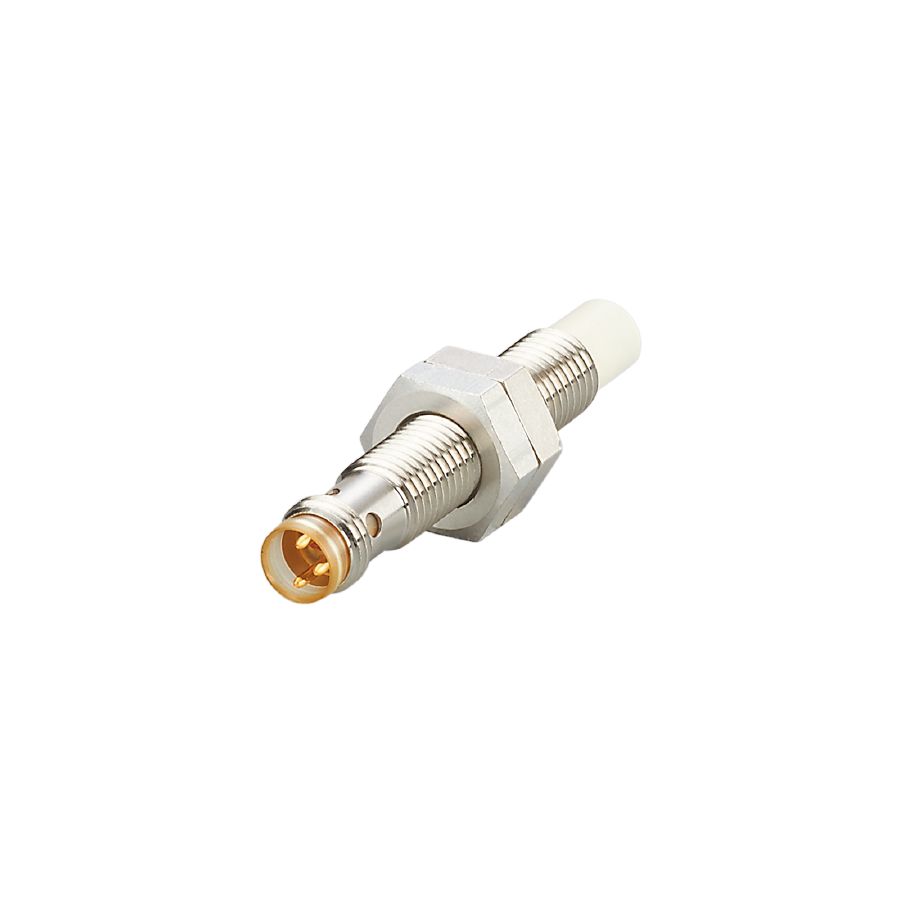

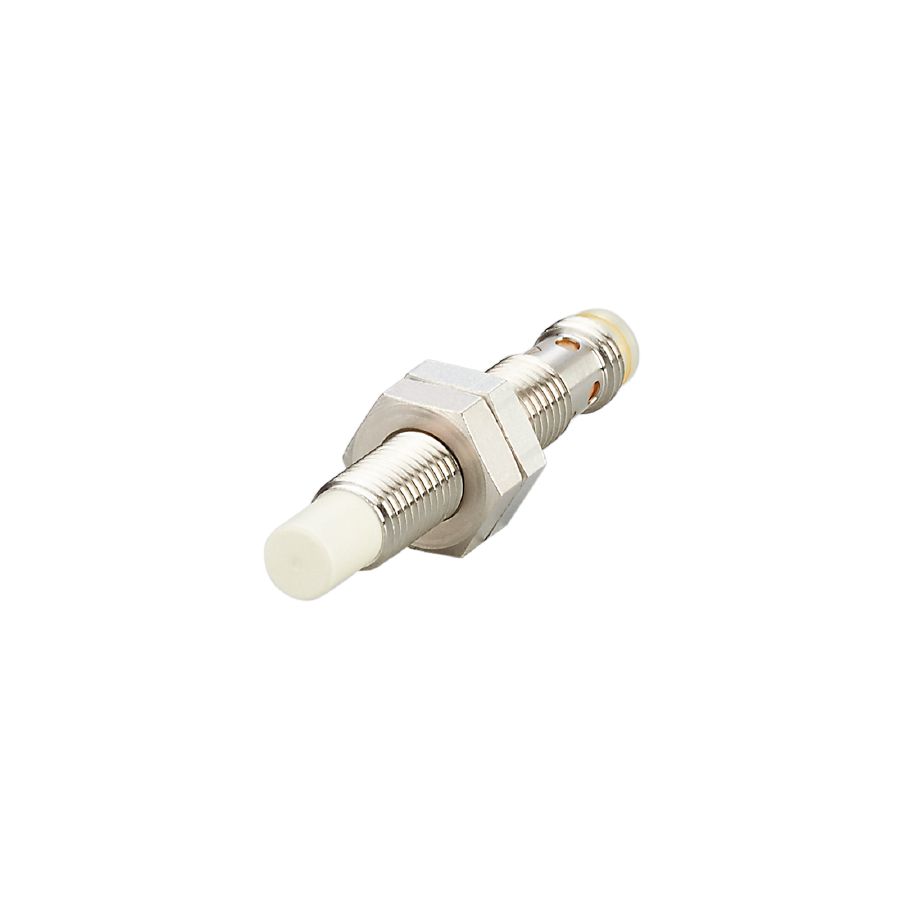

Description
Product characteristics
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Communication interface |
IO-Link |
| Housing |
threaded type |
| Dimensions [mm] |
M8 x 1 / L = 50 |
Application
| Special feature |
Gold-plated contacts |
Electrical data
| Operating voltage [V] |
10…30 DC |
| Current consumption [mA] |
< 15 |
| Protection class |
III |
| Reverse polarity protection |
yes |
Outputs
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
600 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Switch point IO-Link [mm] |
1.13…5.61; (parameterisable) |
| Measuring range IO-Link [mm] |
0.6…6 |
Accuracy / deviations
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4 |
| Hysteresis [% of Sr] |
3…15 |
| Note on hysteresis |
|
| Linearity error IO-Link [%] |
± 3; (of the final value of the measuring range) |
| Repeatability IO-Link [%] |
± 2; (of the final value of the measuring range) |
| Temperature drift |
± 10 %; (of the final value of the measuring range) |
Interfaces
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
3.2 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
16 |
| device status |
4 |
| binary switching information |
2 |
|
| IO-Link functions (acyclical) |
switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1274 |
|
| Note |
| For further information please see the IODD PDF file under “Downloads” |
|
Operating conditions
| Ambient temperature [°C] |
-40…75 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K; (with ifm socket duly screwed on) |
Tests / approvals
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10…3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 Eb |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature change |
| EN 60068-2-14 Na |
TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb |
severity level 5 (4 test cycles) |
|
| MTTF [years] |
778 |
| Embedded software included |
yes |
| UL approval |
| Ta |
-25…70 °C |
| Enclosure type |
Type 1 |
| power supply |
Limited Voltage/Current |
| UL Approval no. |
A031 |
| File number UL |
E174191 |
|
Mechanical data
| Weight [g] |
15.3 |
| Housing |
threaded type |
| Mounting |
non-flush mountable |
| Dimensions [mm] |
M8 x 1 / L = 50 |
| Thread designation |
M8 x 1 |
| Materials |
stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |

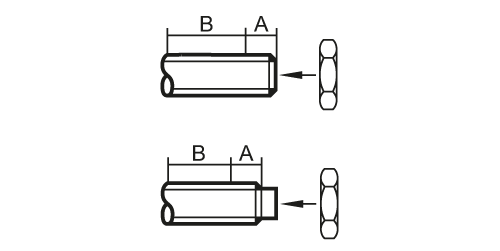

| Tightening torque [Nm] |
A = 5 mm: < 3 Nm; B: < 5 Nm |
Displays / operating elements
| Display |
| switching status |
4 x LED, yellow lights |
|
