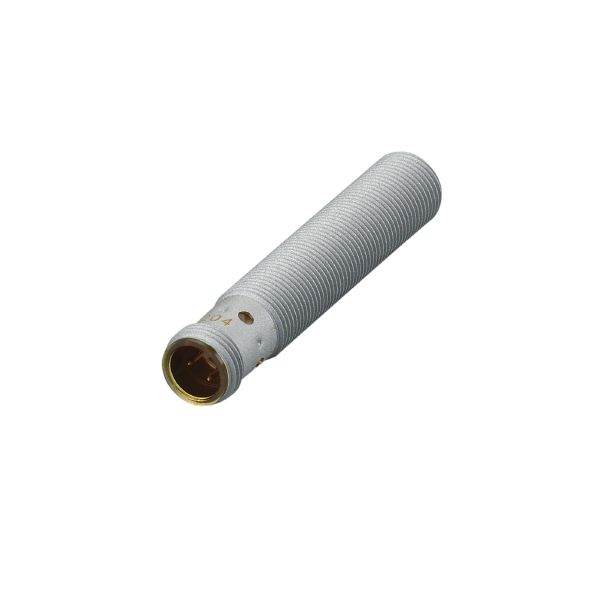

Description
Product characteristics
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range [mm] |
4 |
| Housing |
threaded type |
| Dimensions [mm] |
M12 x 1 / L = 65 |
Application
| Special feature |
Gold-plated contacts; Increased sensing range; Correction factor K = 1; Magnetic-field immune; anti-spatter |
| Application |
Use in welding applications |
| Magnetic-field immune |
yes |
| Max. magnetic field immunity [mT] |
300 |
Electrical data
| Operating voltage [V] |
10…30 DC |
| Current consumption [mA] |
< 20 |
| Protection class |
II |
| Reverse polarity protection |
yes |
Outputs
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
2000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Sensing range [mm] |
4 |
| Real sensing range Sr [mm] |
4 ± 10 % |
| Operating distance [mm] |
0…3.24 |
| Increased sensing range |
yes |
Accuracy / deviations
| Correction factor |
steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1 |
| Hysteresis [% of Sr] |
3…15 |
| Switch point drift [% of Sr] |
-10…10 |
| Correction factor K = 1 |
yes |
Operating conditions
| Ambient temperature [°C] |
-40…85 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 emission |
class B |
|
| MTTF [years] |
466 |
| Embedded software included |
yes |
| UL approval |
| Ta |
-25…70 °C |
| Enclosure type |
Type 1 |
| power supply |
Limited Voltage/Current |
| UL Approval no. |
A005 |
| File number UL |
E174191 |
|
Mechanical data
| Weight [g] |
29.3 |
| Housing |
threaded type |
| Mounting |
flush mountable |
| Dimensions [mm] |
M12 x 1 / L = 65 |
| Thread designation |
M12 x 1 |
| Materials |
brass anti-spatter; sensing face: LCP black; LED window: PEI; lock nuts: brass anti-spatter |
Displays / operating elements
| Display |
| switching status |
4 x LED, yellow |
|
Electrical connection – plug
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
