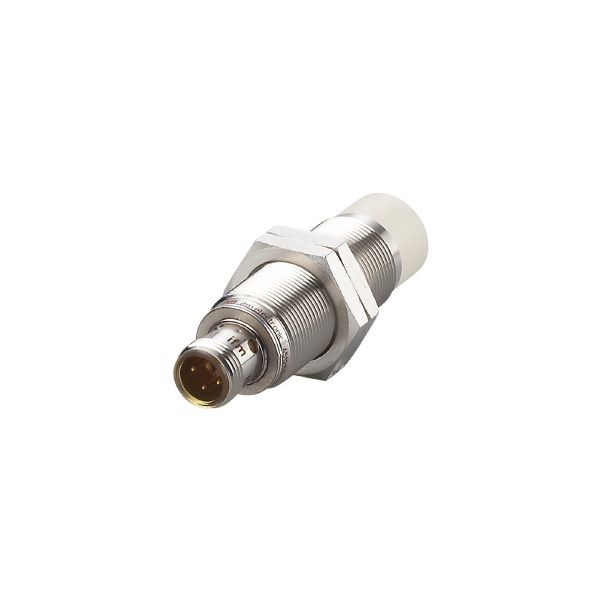

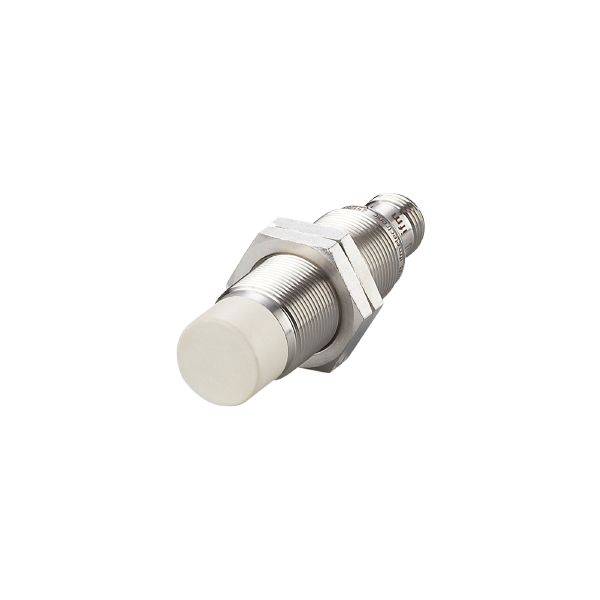

IGC233

  • Resistant to oils and coolants
  • Clearly visible indication of the switching status
  • Very high switching frequency
  • Correction factor 1: Constant sensing range on all metals
  • Magnetic-field immune



SKU: IGC233

$68,80

Description

Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 12
Housing threaded type
Dimensions [mm] M18 x 1 / L = 65



Application
Special feature Gold-plated contacts; Correction factor K = 1; Magnetic-field immune
Application Use in machine tools, coolants and lubricants
Magnetic-field immune yes



Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] 20
Protection class II
Reverse polarity protection yes



Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Overload protection yes



Detection zone
Sensing range [mm] 12
Real sensing range Sr [mm] 12 ± 10 %
Operating distance [mm] 0…9.72



Accuracy / deviations
Correction factor steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1
Hysteresis [% of Sr] 3…15
Switch point drift [% of Sr] -10…10
Correction factor K = 1 yes



Operating conditions
Ambient temperature [°C] -25…70
Protection IP 68; (“Coolant”)



Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 emission class B
MTTF [years] 657
Embedded software included yes
UL approval
Ta -25…70 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. A005
File number UL E174191



Mechanical data
Weight [g] 43
Housing threaded type

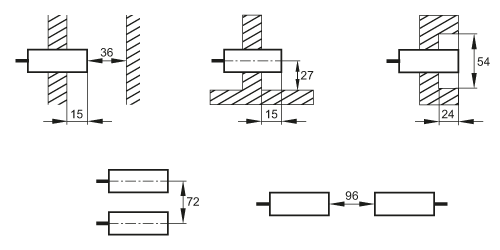

Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 65
Thread designation M18 x 1
Materials housing: stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated



Displays / operating elements
Display
switching status 4 x 90° LED, yellow



Accessories
Items supplied
lock nuts: 2



Remarks
Pack quantity 1 pcs.



Electrical connection – plug
Connection Connector: 1 x M12; coding: A; Contacts: gold-plated



IGC233-01_EN-US

Datasheet
EN PDF
