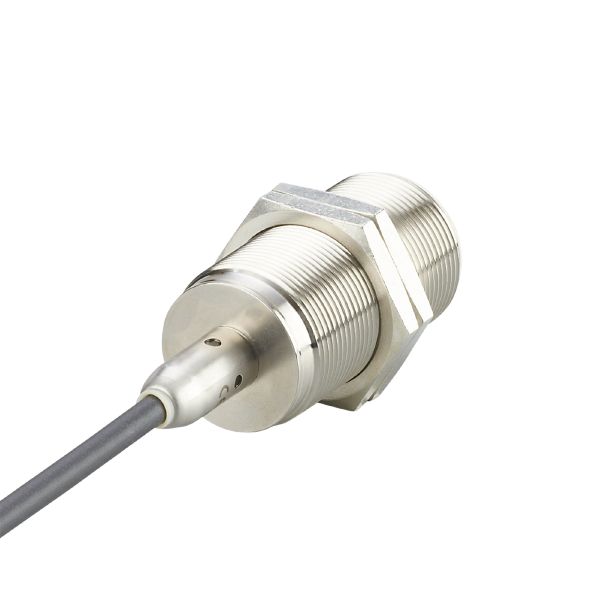

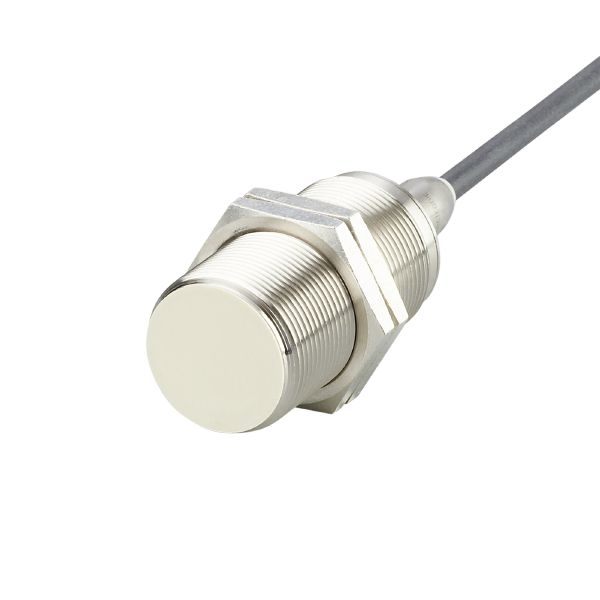

| EMC |
| automotive area |
|
| noise emission and noise interference: ECE R10 |
E1 type approval |
| noise immunity according to DIN ISO 11452-2 |
100 V/m |
| conducted interference in 24 V networks to ISO 7637-2: 2004 (pulse 1 to 4) and ISO16750-2: 2012 (load dump) |
|
| pulse |
1 2a 2b 3a 3b 4 Load dump |
| severity level |
III III III III III III Test A |
| failure criterion |
C A C A A C C |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-5 Surge |
0,5 kV mains line to line |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10…3000 Hz) / -20…50 °C |
|
50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40…85 °C |
|
| Continuous shock resistance |
| EN 60068-2-27 |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20…50 °C |
|
| Fast temperature change |
| EN 60068-2-14 Na |
TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb |
severity level 5 (4 test cycles) |
|
| MTTF [years] |
1101 |
| UL approval |
| Ta |
0…40 °C |
| Enclosure type |
Type 1 |
| power supply |
Limited Voltage/Current |
| File number UL |
E174191 |
|
