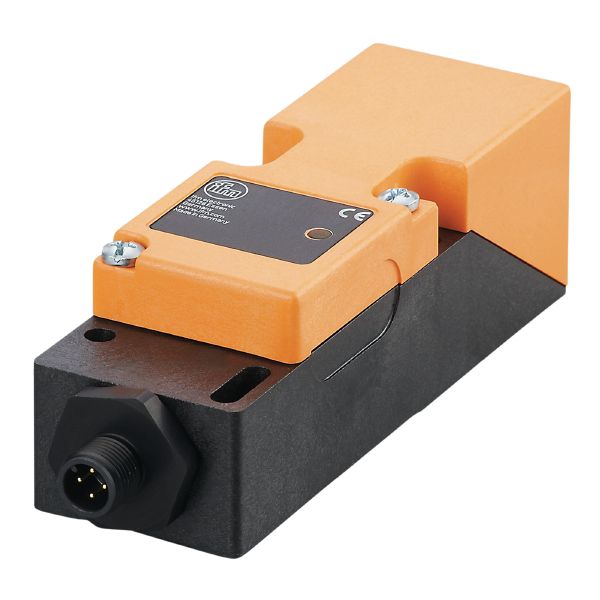

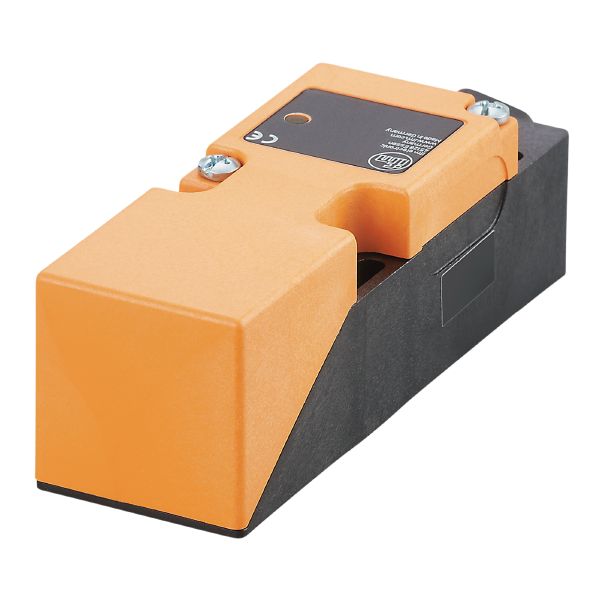

IM5033

IM5033 - Image 2

IM5033 - Image 3

IM5033

Long sensing range for use in conveying
Output function normally open / normally closed programmable
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Clearly visible indication of the switching status

SKU: IM5033

$92,80

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	15
Housing	rectangular
Dimensions [mm]	40 x 40 x 120

Electrical data

Operating voltage [V]	10…36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	250
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %
Operating distance [mm]	0…12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1…15
Switch point drift [% of Sr]	-10…10

Operating conditions

Ambient temperature [°C]	-25…80
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

2234

UL approval

Ta	0…40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight [g]	205.5
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 120
Materials	PPE

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Remarks

5 positions of the active zone possible

Pack quantity

1 pcs.

Electrical connection – plug

Connection	Connector: 1 x M12; coding: A

IM5033-00_EN-US

Datasheet
EN PDF
