$49,30
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 20 |

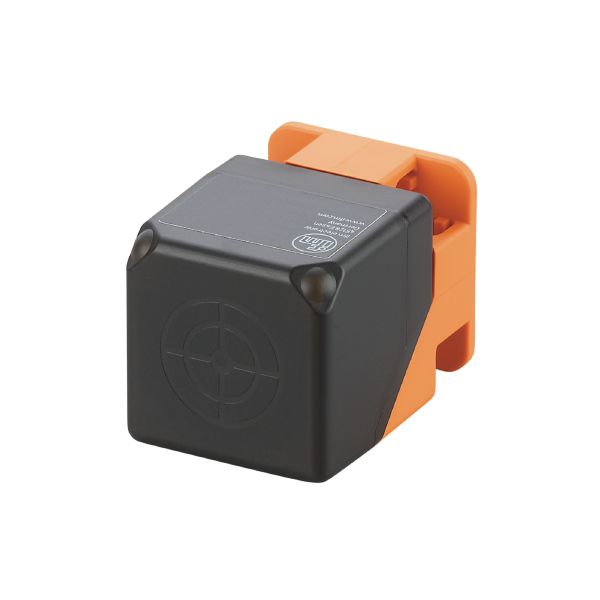

| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 54 |
| Special feature | Gold-plated contacts |
|---|
| Operating voltage [V] | 10…36 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Sensing range [mm] | 20 |
|---|---|
| Operating distance [mm] | 0…16.2 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1…20 |
| Ambient temperature [°C] | -25…70 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1590 | ||||||||||
| UL approval |
|
| Weight [g] | 146.5 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Mounting | flush mountable |
| Dimensions [mm] | 40 x 40 x 54 |
| Materials | PA |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|

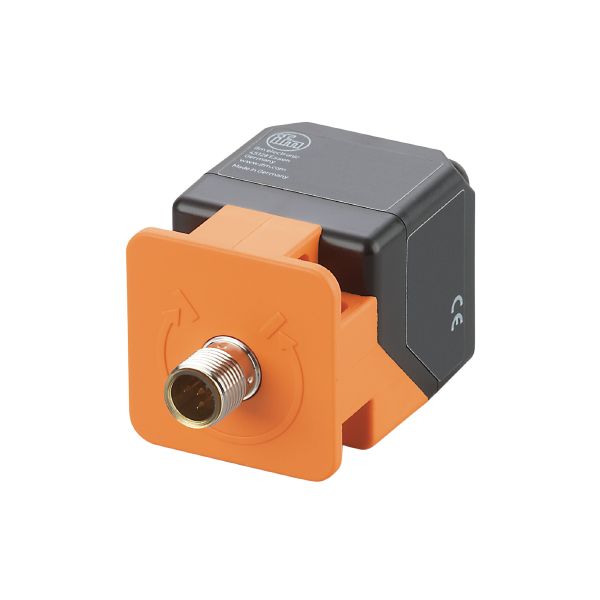

| Connection | Connector: 1 x M12; coding: A; Locking: locking, rotatable; Contacts: gold-plated |
|---|
