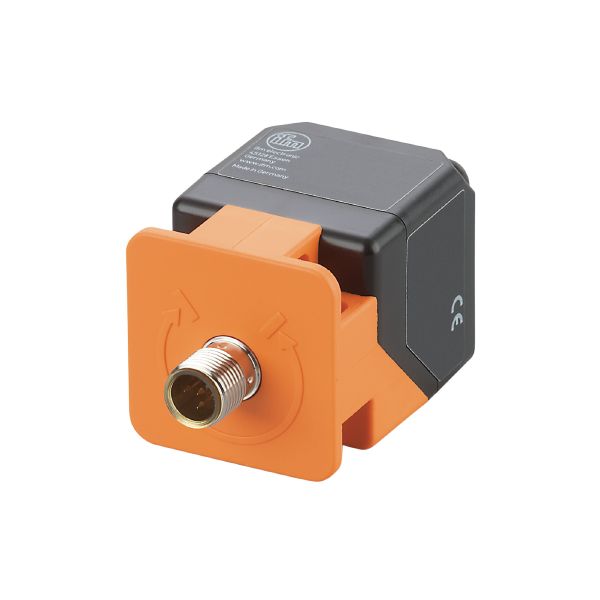

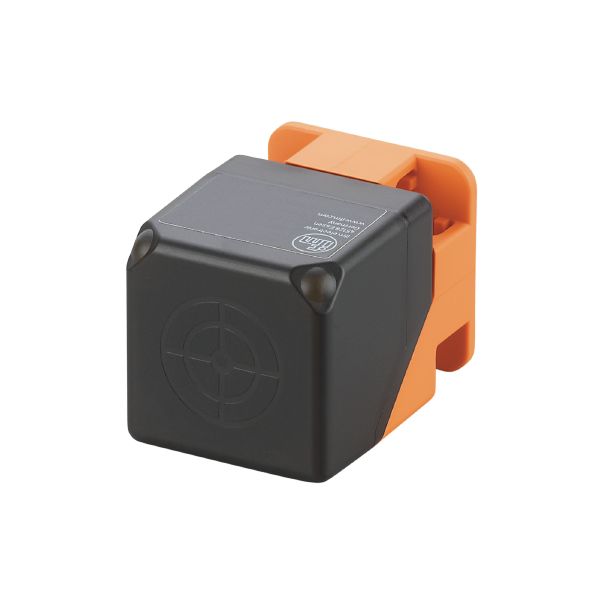

IM5117

IM5117 - Image 2

IM5117 - Image 3

IM5117

Long sensing range for use in conveying
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
LED display to check switching status and operation
Corner LEDs clearly visible in any mounted position

SKU: IM5117

$50,70

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	40
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Electrical data

Operating voltage [V]	10…36 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	60
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	40
Operating distance [mm]	0…32.4

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1…20

Operating conditions

Ambient temperature [°C]	-25…70
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV CD / 6 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

1494

UL approval

Ta	-25…70 °C
Enclosure type	Type 1
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PA

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

Connection	Connector: 1 x M12; coding: A; Locking: locking, rotatable

IM5117-00_EN-US

Datasheet
EN PDF
