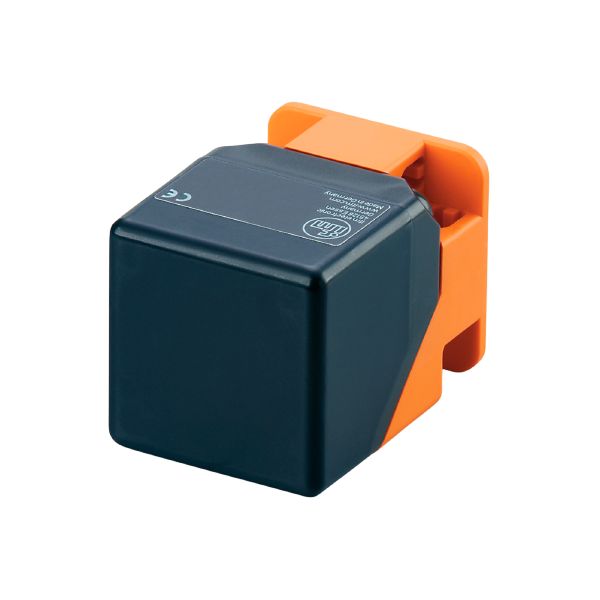

IM5119

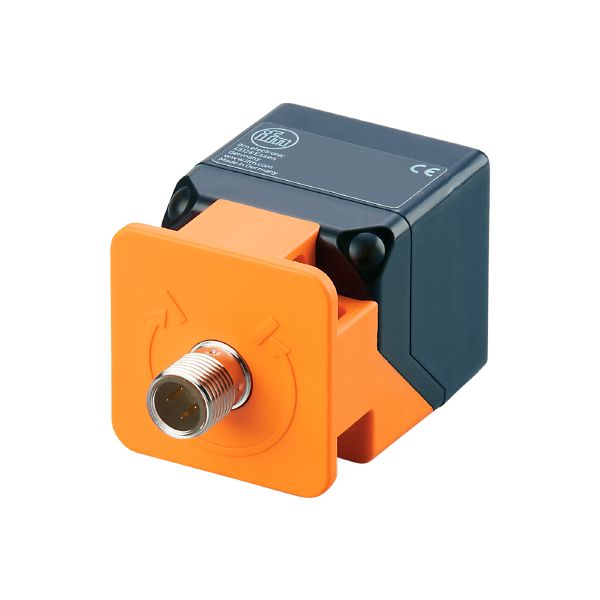

IM5119 - Image 2

IM5119 - Image 3

IM5119

Magnetic-field immune for welding applications
Resistant to weld slag thanks to non-stick coating
Five positions of the sensing face selectable
Long sensing range for use in conveying
Correction factor 1: Constant sensing range on all metals

SKU: IM5119

$58,80

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Application

Special feature	Correction factor K = 1; Magnetic-field immune; anti-spatter
Magnetic-field immune	yes
Max. magnetic field immunity [mT]	300

Electrical data

Operating voltage [V]	10…36 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0…16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1
Hysteresis [% of Sr]	1…20
Switch point drift [% of Sr]	-10…10
Correction factor K = 1	yes

Operating conditions

Ambient temperature [°C]	-25…70
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV CD / 4 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

1165

UL approval

Ta	-25…70 °C
Enclosure type	Type 1
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	141.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	housing: PA anti-spatter; sensing face: PA black anti-spatter; end cap: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

Connection	Connector: 1 x M12; coding: A; Locking: locking, rotatable, stainless steel (1.4404 / 316L)

IM5119-02_EN-US
