| Stroke | 10 mm … 2,000 mm |
| Piston diameter | 32 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Conforms to standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Structural design | Piston Piston rod |
| Position sensing | For proximity sensor |

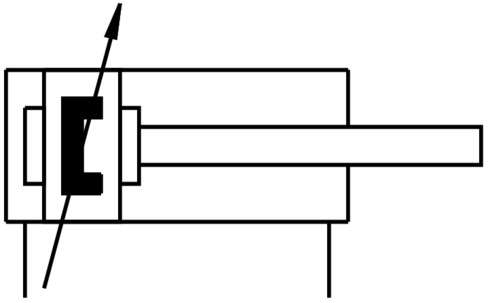

| Symbol | 00991235 |
| Operating pressure | 0.6 bar … 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 4 – Particularly high corrosion stress |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -20 °C … 80 °C |
| Cushioning length | 19 mm |
| Theoretical force at 6 bar, retracting | 415 N |
| Theoretical force at 6 bar, advancing | 483 N |
| Basic weight with 0 mm stroke | 1,045 g |
| Additional weight per 10 mm stroke | 20 g |
| Type of mounting | With internal thread With accessories Optionally: |
| Pneumatic connection | G1/8 |
| Cover material | Cast stainless steel |
| Seals material | TPE-U(PU) |
| Housing material | High-alloy stainless steel |
| Piston rod material | High-alloy stainless steel |
