KG5079

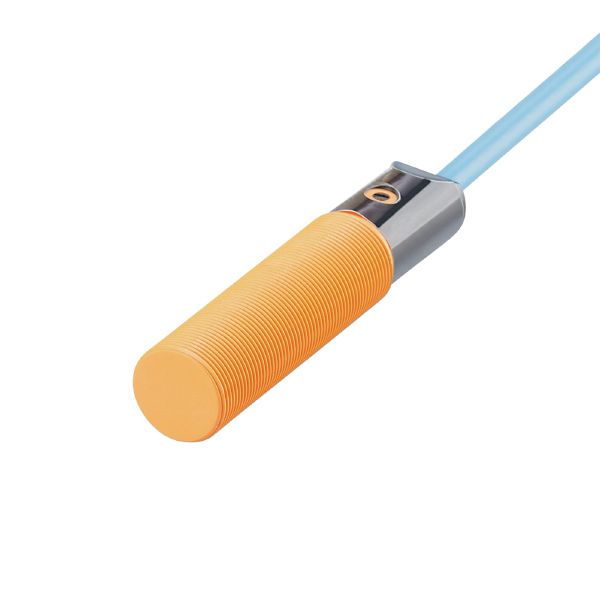

KG5079 - Image 2

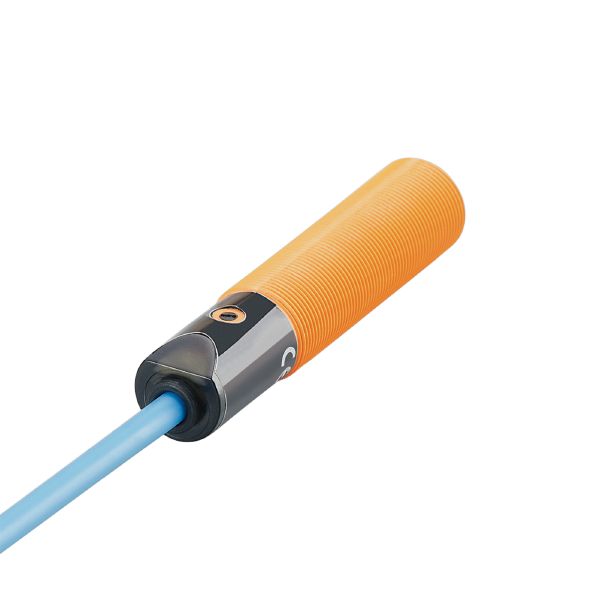

KG5079 - Image 3

KG5079

For applications in hazardous areas
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
For position detection or level monitoring

SKU: KG5079

$139,60

Description

Product characteristics

Electrical design	NAMUR
Output function	normally closed
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 84

Electrical data

Connection to switching amplifiers	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5…15
Current consumption [mA]	< 1; (disabled; conductive: > 2,2)
Protection class	II

Outputs

Electrical design	NAMUR
Output function	normally closed
Switching frequency DC [Hz]	4

Detection zone

Sensing range [mm]	8
Sensing range adjustable	yes
Factory setting sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1…15
Switch point drift [% of Sr]	-15…15

Operating conditions

Ambient temperature [°C]	-20…60
Protection	IP 67

Tests / approvals

Approval

BVS 13 ATEX E009 X; IECEx BVS 13.0015 X

ATEX marking

II 1G Ex ia IIB T4 Ga

II 1D Ex ia IIIC T135°C Da

EMC

EN 61000-4-2 ESD	– kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011 emission	class B

Shock resistance

EN 60947-5-2

MTTF [years]

503

Safety classification

Max. internal capacitance [nF]	11.5
Max. internal inductance [µH]	3

Mechanical data

Weight [g]	320
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 84
Thread designation	M18 x 1
Materials	PBT

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PVC; 2 x 0.5 mm²

KG5079
