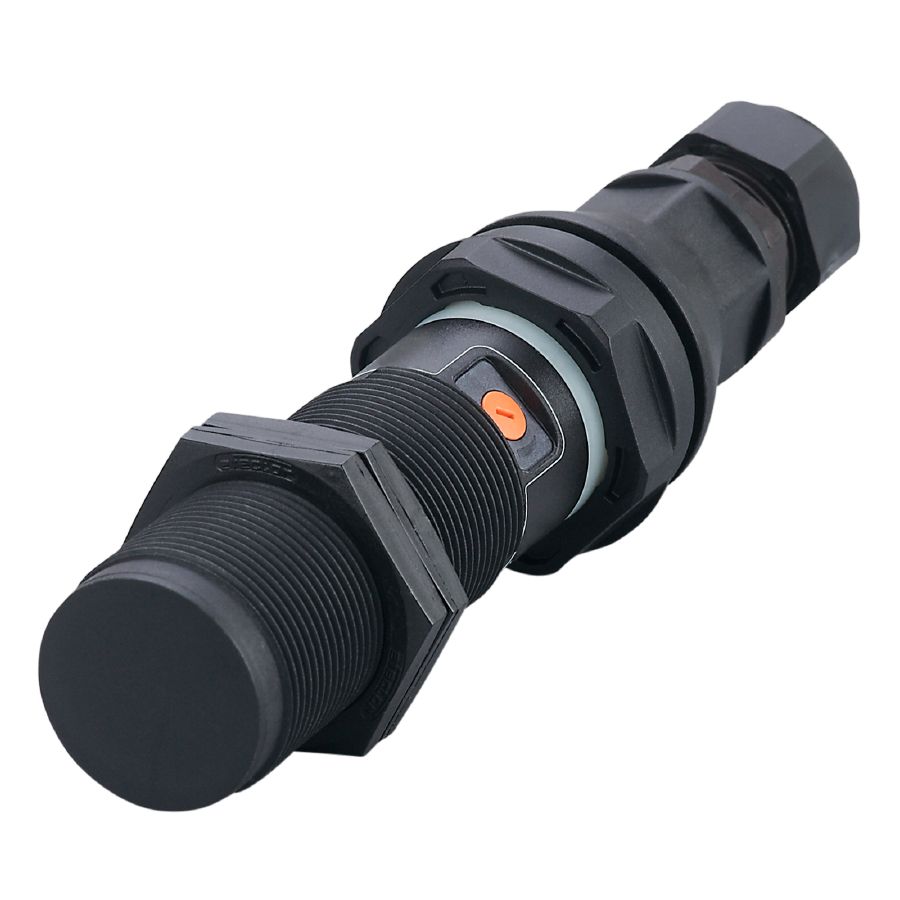

KI530A

Description

Product characteristics

Electrical data

Operating voltage [V]	10…30 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 22
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300
Measuring principle	capacitive

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	200
Short-time current rating of switching output [mA]	200
Switching frequency DC [Hz]	10
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Detection zone

Accuracy / deviations

Hysteresis [% of Sr]	1…15
Switch point drift [% of Sr]	-20…20

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	20
IO-Link functions (acyclical)	application specific tag; operating hours counter; PNP / NPN (parametrierbar); switch point setting; Hysteresis

Operating conditions

Ambient temperature [°C]	-20…60
Protection	IP 65; IP 67

Tests / approvals

ATEX marking

II 3D Ex tc IIIC T90°C Dc X

EMC

Vibration resistance

EN 60068-2-6 Fc

10…55 Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 6 shocks / 11 ms half-sine (x, y, z)

MTTF [years]

623

Mechanical data

Weight [g]	146.4
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 150
Thread designation	M30 x 1.5
Materials	housing: PA; potentiometer: LCP; PBT
