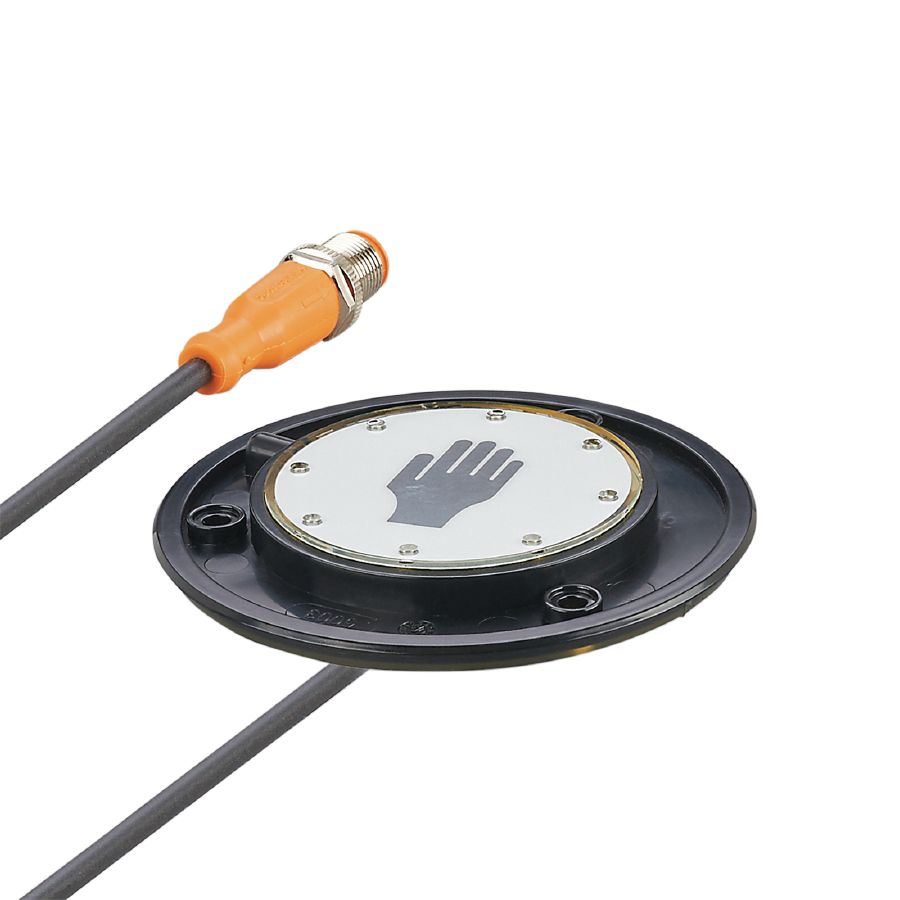

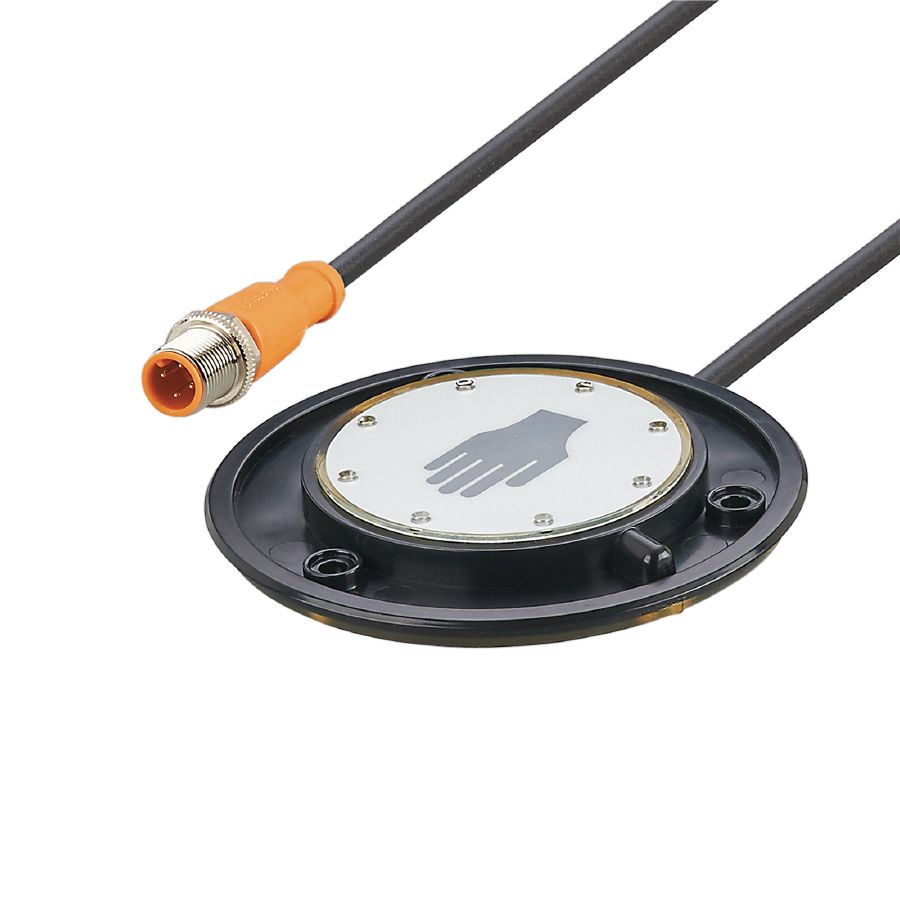

KT5020

Description

Product characteristics

Application

Operating principle	dynamic

Electrical data

Operating voltage [V]	12…30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes
Length of output signal [ms]	300

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40…85
Protection	IP 67; IP 69K; (on the front)

Mechanical data

Weight [g]	136.5
Dimensions [mm]	Ø 96.9 / L = 11
Materials	active face: PA Grilamid TR 90UV transparent; housing: PC/ABS black

Displays / operating elements

Display

switching status	8 x LED, red
function	8 x LED, green can be activated via PIN 2

Accessories

Accessories (optional)

surround in different colours

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.3 m, PUR

Electrical connection – plug

Connection	Connector: 1 x M12; coding: A

Datasheet
EN PDF
