| Size of valve actuator | 125 |
| Stroke | 40 mm … 990 mm |
| Piston diameter | 125 mm |
| Based on norm | ISO 15552 |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | PistonPiston rodTie rodCylinder barrel |
| Position sensing | With integrated linear potentiometer |

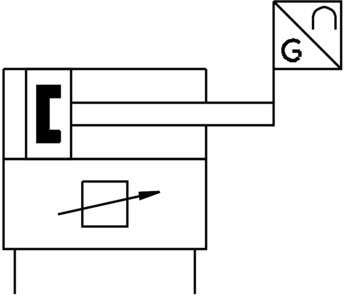

| Symbol | 00992806 |
| Measuring principle of linear potentiometer | Potentiometer |
| Reverse polarity protection | Initialization connectionfor operating voltagefor setpoint value |
| Operating pressure | 0.3 MPa … 0.8 MPa |
| Operating pressure | 3 bar … 8 bar |
| Operating pressure | 43.5 psi … 116 psi |
| Nominal operating pressure | 0.6 MPa |
| Nominal operating pressure | 6 bar |
| Nominal operating pressure | 87 psi |
| Analog output | 4 – 20 mA |
| DC operating voltage range | 21.6 V … 26.4 V |
| Max. current consumption | 220 mA |
| Nominal operating voltage DC | 24 V |
| Setpoint input | 4 mA … 20 mA |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX)As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCacc. to UK EX instructionsTo UK RoHS instructions |
| Explosion protection certification outside the EU | EPL Dc (GB)EPL Gc (GB) |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX) |
| ATEX category gas | II 3G |
| ATEX category for dust | II 3D |
| Type of ignition protection for gas | Ex ec IIC T4 X Gc |
| Type of (ignition) protection for dust | Ex tc IIIC T120°C X Dc |
| Explosive ambient temperature | -5°C <= Ta <= +50°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
| Storage temperature | -5 °C … 50 °C |
| Temperature of medium | -5 °C … 40 °C |
| Relative air humidity | 5 – 100 %Condensing |
| Degree of protection | IP65IP67IP69KNEMA 4 |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
| Ambient temperature | -5 °C … 50 °C |
| Theoretical force at 6 bar, retracting | 6881 N |
| Theoretical force at 6 bar, advancing | 7363 N |
| Air consumption, retracting, per 10 mm stroke | 0.803 l |
| Air consumption advancing per 10 mm stroke | 0.859 l |
| Moving mass at 0 mm stroke | 1900 g |
| Additional moving mass per 10 mm stroke | 53 g |
| Basic weight with 0 mm stroke | 7950 g |
| Additional weight per 10 mm stroke | 134 g |
| Precision of analog output | 1 %FS |
| Size of dead space | 1 %FS |
| Hysteresis in ± %FS | 1 %FS |
| Positioning accuracy | 1.0 %FS |
| Repetition accuracy in ± %FS | 1 %FS |
| Electrical connection | 5-pinStraight plug/screw terminalwith specific accessories |
| Pneumatic connection | For pneumatic tubing outside diameter 8 mmFor pneumatic tubing outside diameter 10 mmwith specific accessories |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Material of end caps | Wrought aluminum alloy, coated |
| Lower cover material | Coated die-cast aluminum |
| Piston rod material | High-alloy stainless steel |
| Piston rod wiper material | NBR |
| Material of screws | Steel, coatedHigh-alloy stainless steel |
| Static seal material | NBR |
| Tie rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
