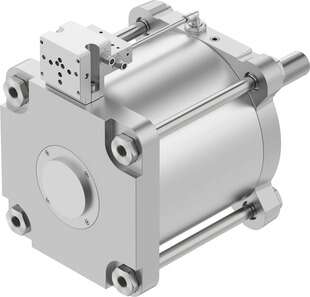

| Size of valve actuator | 250 |
| Stroke | 40 mm … 990 mm |
| Piston diameter | 250 mm |
| Based on norm | ISO 15552 |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | PistonPiston rodTie rodCylinder barrel |
| Position sensing | With integrated linear potentiometer |
| Symbol | 00992807 |
| Measuring principle of linear potentiometer | Potentiometer |
| Reverse polarity protection | yes |
| Operating pressure | 0.3 MPa … 0.8 MPa |
| Operating pressure | 3 bar … 8 bar |
| Operating pressure | 43.5 psi … 116 psi |
| Nominal operating pressure | 0.6 MPa |
| Nominal operating pressure | 6 bar |
| Analog output | 4 – 20 mA |
| DC operating voltage range | 9 V … 30 V |
| Recommended contact current | 0.1 µA |
| Max. short-time slider current | 10000 µA |
| Power supply | 2-wire |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX)As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCacc. to UK EX instructionsTo UK RoHS instructions |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb |
| Type of (ignition) protection for dust | Ex h IIIC T120°C Db |
| Explosive ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
| Storage temperature | -20 °C … 80 °C |
| Relative air humidity | 5 – 100 %CondensingNon-condensing |
| Degree of protection | IP65IP67IP69KNEMA 4 |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
| Ambient temperature | -20 °C … 80 °C |
| Impact energy in the end positions | 1.9 J |
| Theoretical force at 6 bar, retracting | 28274 N |
| Theoretical force at 6 bar, advancing | 29452 N |
| Air consumption, retracting, per 10 mm stroke | 3.299 l |
| Air consumption advancing per 10 mm stroke | 3.436 l |
| Moving mass at 0 mm stroke | 9300 g |
| Additional moving mass per 10 mm stroke | 134 g |
| Basic weight with 0 mm stroke | 31100 g … 32800 g |
| Additional weight per 10 mm stroke | 358 g |
| Hysteresis | 0.4 mm |
| Independent linearity | ±0.05 % |
| Repetition accuracy in ± %FS | 1 %FS |
| Repetition accuracy in ± mm | 0.7 mm |
| Electrical connection | 2-pin3-pin4-pin5-pinA-codedCable fitting M16x1.5M12x1Straight plug/screw terminalPlug, straightwith specific accessories |
| Pneumatic connection | G3/8G1/2For pneumatic tubing outside diameter 8 mmwith specific accessories |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Material of end caps | Wrought aluminum alloy, coated |
| Lower cover material | Coated die-cast aluminum |
| Electrical connection material | Brass, nickel-platedHigh-alloy stainless steel |
| Piston rod material | High-alloy stainless steel |
| Piston rod wiper material | NBR |
| Piping material | High-alloy stainless steel |
| Material of pneumatic tubing | PE |
| Material of screws | Steel, coatedHigh-alloy stainless steel |
| Static seal material | NBR |
| Material of pneumatic fitting | Brass, nickel-platedHigh-alloy stainless steel |
| Tie rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
