| Size of valve actuator | 80 |
| Stroke | 40 mm … 600 mm |
| Stroke reserve | 2 mm |
| Piston diameter | 80 mm |
| Based on norm | DIN 3358VDI/VDE 3845 (NAMUR) |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Position sensing | For proximity sensor |

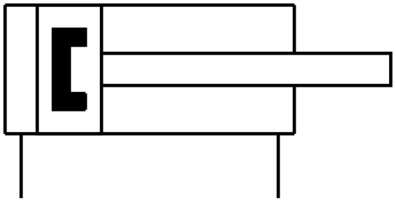

| Symbol | 00991216 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Operating pressure | 0.2 MPa … 0.8 MPa |
| Operating pressure | 2 bar … 8 bar |
| Operating pressure | 29 psi … 116 psi |
| Nominal operating pressure | 0.6 MPa |
| Nominal operating pressure | 6 bar |
| Nominal operating pressure | 87 psi |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb |
| Type of (ignition) protection for dust | Ex h IIIC T120°C Db |
| Explosive ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 – High corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Theoretical force at 6 bar, retracting | 2827 N |
| Theoretical force at 6 bar, advancing | 3016 N |
| Valve actuator efficiency | 95 % |
| Moving mass at 0 mm stroke | 624 g |
| Additional moving mass per 10 mm stroke | 25 g |
| Basic weight with 0 mm stroke | 1843 g |
| Additional weight per 10 mm stroke | 68 g |
| Pneumatic connection | G1/4 |
| Cover material | Wrought aluminum alloy |
| Seals material | NBRTPE-U(PU) |
| Housing material | Wrought aluminum alloySmooth anodized |
| Piston rod material | High-alloy stainless steel |
