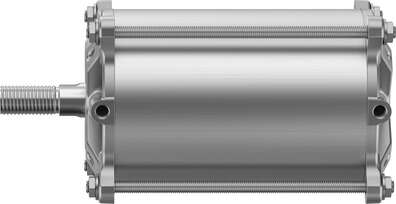

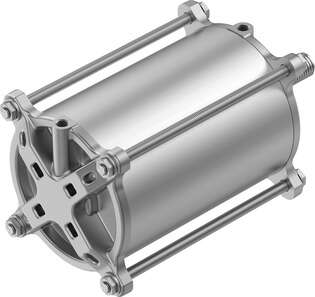

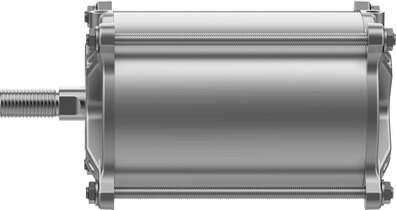

| Size of valve actuator | 160 |
| Flange hole pattern | F10 |
| Stroke | 150 mm |
| Piston diameter | 160 mm |
| Standard connection for valve | ISO 5210 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | PistonPiston rodTie rodCylinder barrel |
| Position sensing | For proximity sensor |

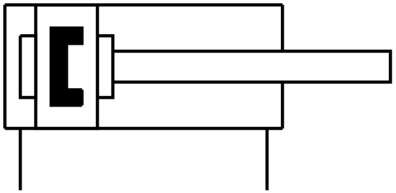

| Symbol | 00991217 |
| Operating pressure | 0.06 MPa … 0.8 MPa |
| Operating pressure | 0.6 bar … 8 bar |
| Operating pressure | 8.7 psi … 116 psi |
| Nominal operating pressure | 0.6 MPa |
| Nominal operating pressure | 6 bar |
| Nominal operating pressure | 87 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -20 °C … 80 °C |
| Impact energy in the end positions | 3.3 J |
| Theoretical force at 6 bar, retracting | 11581 N |
| Theoretical force at 6 bar, advancing | 12064 N |
| Air consumption, retracting, per 10 mm stroke | 1.351 l |
| Air consumption advancing per 10 mm stroke | 1.407 l |
| Moving mass at 0 mm stroke | 2102 g |
| Additional moving mass per 10 mm stroke | 64.34 g |
| Product weight | 8180 g |
| Basic weight with 0 mm stroke | 5948.7 g |
| Additional weight per 10 mm stroke | 148.61 g |
| Type of mounting | On flange as per ISO 5210With spacer boltOptionally: |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Cover material | Gravity die-cast aluminum |
| Piston rod material | High-alloy stainless steel |
| Piston rod wiper material | TPE-U(PU) |
| Nut material | High-alloy stainless steel |
| Static seal material | NBR |
| Tie rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
