| Exhaust air function | Metered blowing |

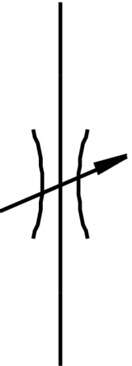

| Symbol | 00991454 |
| Operating pressure | 0 bar … 10 bar |
| Flow rate with respect to atmosphere | 120 l/min |
| Standard nominal flow rate | 120 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Noise level | 90 dB(A) |
| Ambient temperature | -10 °C … 50 °C |
| Product weight | 240 g |
| Pneumatic connection | Internal thread G1/4 |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy |
