Membrane air dryer

543638

SKU: MS6-LDM1
ID:459579

Description

Size 6
Series MS
Mounting position Vertical +/- 5°
Structural design Membrane dryer

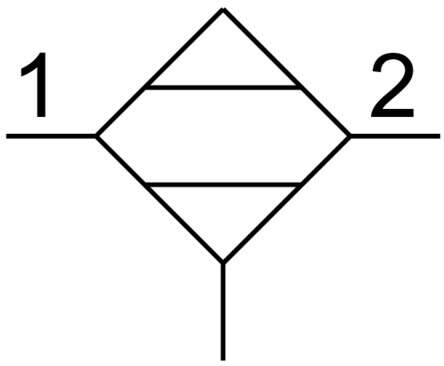

Symbol 00991516
Operating pressure 3 bar … 12.5 bar
Standard nominal flow rate 200 l/min … 400 l/min
Certification c UL us – Recognized (OL)
CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
Explosion prevention and protection Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
ATEX category gas II 2G
ATEX category for dust II 2D
Type of ignition protection for gas Ex h IIC T6 Gb X
Type of (ignition) protection for dust Ex h IIIC T60°C Db X
Explosive ambient temperature +2°C <= Ta <= +50°C
Operating medium Compressed air as per ISO 8573-1:2010 [1:4:2]
Information on operating and pilot media Operation with oil lubrication not possible
Pressure dew point reduction -253.15 °C
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Storage temperature -20 °C … 60 °C
For use in the food industry See supplementary material information
Air quality class at the output Compressed air as per ISO 8573-1:2010 [1:3:2]
Temperature of medium 2 °C … 50 °C
Ambient temperature 2 °C … 50 °C
Type of mounting Line installationWith accessoriesOptionally:
Housing material Die-cast aluminum
Material of bowl Wrought aluminum alloy
