Membrane air dryer

GTIN: 4052568182113

543640

SKU: MS6-LDM1-1/4-P20
ID:459595

Description

Size 6
Series MS
Mounting position Vertical +/- 5°
Structural design Membrane dryer

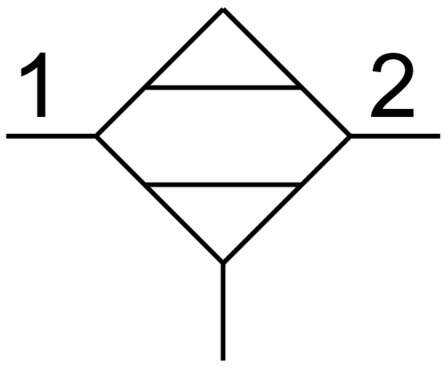

Symbol 00991516
Operating pressure 3 bar … 12.5 bar
Standard nominal flow rate 200 l/min
Operating medium Compressed air as per ISO 8573-1:2010 [1:4:2]
Information on operating and pilot media Operation with oil lubrication not possible
Pressure dew point reduction -253.15 °C
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Storage temperature -20 °C … 60 °C
For use in the food industry See supplementary material information
Air quality class at the output Compressed air as per ISO 8573-1:2010 [1:3:2]
Temperature of medium 2 °C … 50 °C
Ambient temperature 2 °C … 50 °C
Product weight 1050 g
Type of mounting Line installationWith accessoriesOptionally:
Pneumatic connection 1 G1/4
Pneumatic connection 2
Note on materials RoHS-compliant
Housing material Die-cast aluminum
Material of bowl Wrought aluminum alloy
