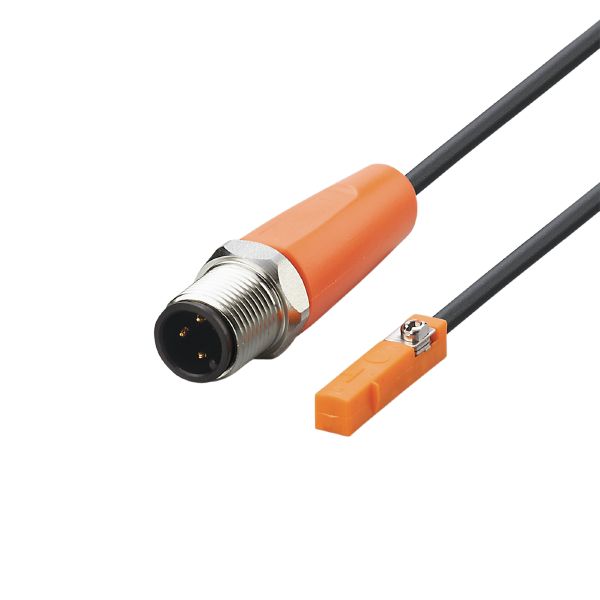

MK501A

  • For applications in hazardous areas
  • High protection rating for the requirements of harsh industrial environments
  • Self-locking fixture for quick mounting and easy adjustment
  • Easy fit ‘drop from the top’ into a slot
  • Very high switching frequency



SKU: MK501A

$52,40

Description

Product characteristics
Electrical design PNP
Output function normally open
Dimensions [mm] 25 x 5 x 6.5
Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] < 10
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 30
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10000
Short-circuit protection yes
Overload protection yes
Detection zone
Response sensitivity [mT] 2.8
Travel speed [m/s] > 10
Accuracy / deviations
Hysteresis [mm] < 1.5
Repeatability [mm] < 0.2
Operating conditions
Ambient temperature [°C] -25…60
Protection IP 65; IP 67
Tests / approvals
ATEX marking II 3D Ex tc IIIC T125°C Dc X
EMC
EN 61000-4-2 ESD – CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF [years] 3694
Mechanical data
Weight [g] 52.4
Mounting flush mountable
Type of mounting fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type T-slot cylinders; (adapters allow mounting to different cylinder types)
Dimensions [mm] 25 x 5 x 6.5
Materials PA; stainless steel
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Protective cover: 1 x T-Nut, E12259
Remarks
Pack quantity 1 pcs.
Electrical connection – plug
Connection Cable: 0.3 m, PUR
Connection Connector: 1 x M12; coding: A; Locking: Hexagon nut, rotatable, stainless steel



MK501A

Datasheet
EN PDF
