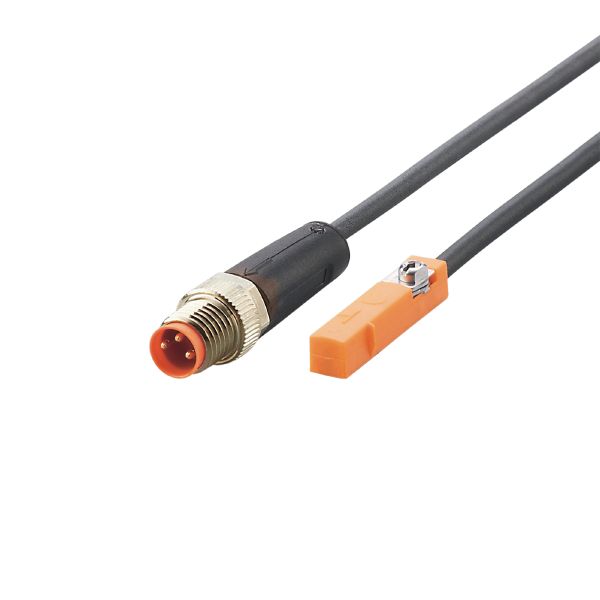

MK5121

MK5121 - Image 2

MK5121

Self-locking fixture for quick mounting and easy adjustment
Easy fit ‘drop from the top’ into a slot
Moulded cable ensuring very good strain relief
Clearly visible indication of the switching status
Very high switching frequency

SKU: MK5121

$46,50

Description

Product characteristics

Electrical design	PNP
Output function	normally open
Dimensions [mm]	25 x 5 x 6.5

Electrical data

Operating voltage [V]	10…30 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	30

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Response sensitivity [mT]	2.8
Travel speed [m/s]	> 10

Accuracy / deviations

Hysteresis [mm]	< 1.5
Repeatability [mm]	< 0.2

Operating conditions

Ambient temperature [°C]	-25…85
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	– CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

3694

UL approval

Ta	-25…75 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current (Marking Class 2)
UL Approval no.	C003
File number UL	E174191

Mechanical data

Weight [g]	16.7
Mounting	flush mountable
Type of mounting	fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type	T-slot cylinders
Dimensions [mm]	25 x 5 x 6.5
Materials	housing: PA; fastening clamp: stainless steel

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

rubber placeholder: 1

Cable clip: 1

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

Connection	Cable: 0.5 m, PUR
Connection	Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable

MK5121

Datasheet
EN PDF
