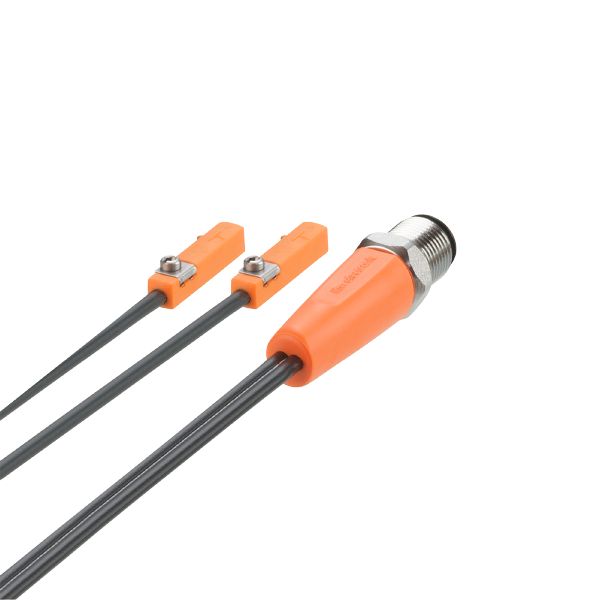

Product characteristics
| Electrical design |
PNP |
| Output function |
2 x normally open |
| Dimensions [mm] |
25 x 5 x 6.5 |
Electrical data
| Operating voltage [V] |
10…30 DC; (“supply class 2” to cULus) |
| Current consumption [mA] |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time [ms] |
30 |
Outputs
| Electrical design |
PNP |
| Output function |
2 x normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100; (per sensor) |
| Switching frequency DC [Hz] |
6000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Response sensitivity [mT] |
2.8 |
| Travel speed [m/s] |
< 10 |
Accuracy / deviations
| Hysteresis [mm] |
1.5 |
| Repeatability [mm] |
< 0.2 |
Operating conditions
| Ambient temperature [°C] |
-25…85 |
| Protection |
IP 65; IP 67; IP 69K |
Tests / approvals
| EMC |
| EN 61000-4-2 ESD |
– CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| MTTF [years] |
3523 |
| UL approval |
| Ta |
-25…75 °C |
| Enclosure type |
Type 1 |
| power supply |
Limited Voltage/Current (Marking Class 2) |
| File number UL |
E174191 |
|
Mechanical data
| Weight [g] |
28.2 |
| Mounting |
flush mountable |
| Type of mounting |
fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type |
T-slot cylinders |
| Dimensions [mm] |
25 x 5 x 6.5 |
| Materials |
housing: PA; fastening clamp: stainless steel |
Displays / operating elements
| Display |
| switching status |
1 x LED, yellow |
|
Accessories
| Items supplied |
| rubber placeholder: 2 |
| Cable clip: 2 |
|

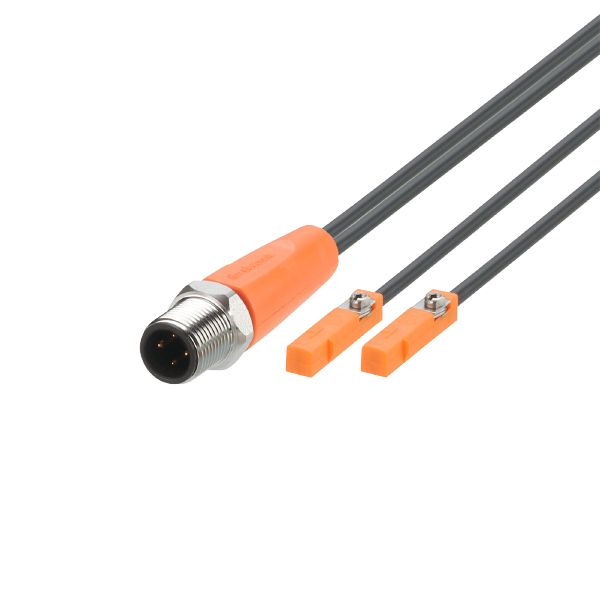

Electrical connection – Cable 1
Electrical connection – Cable 2
Electrical connection – plug
| Connection |
Connector: 1 x M12; coding: A; Locking: Hexagon nut, rotatable, stainless steel |
