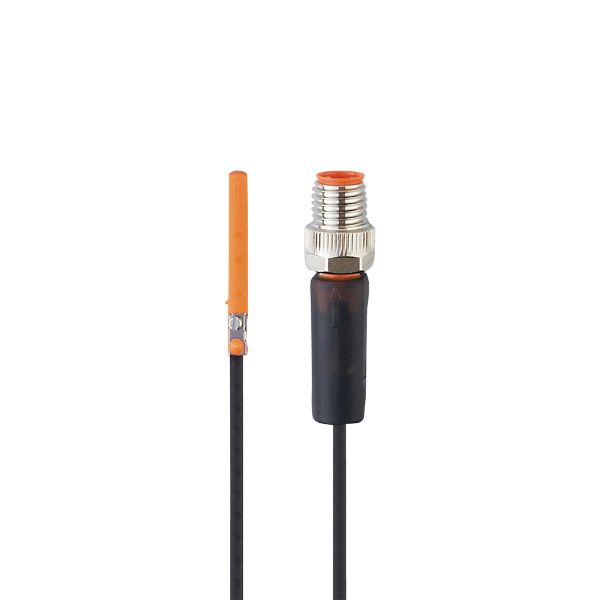

MK5308

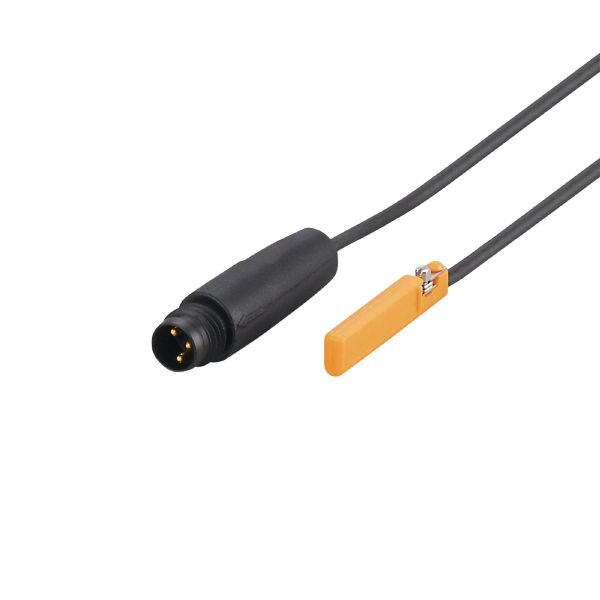

MK5308 - Image 2

MK5308

Patented mounting method with screw for stable position and strain relief
Space-saving cable with M8 connector

SKU: MK5308

$50,60

Description

Product characteristics

Electrical design	NPN
Output function	normally open
Dimensions [mm]	26.1 x 2.8 x 5.5

Electrical data

Operating voltage [V]	10…30 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	30

Outputs

Electrical design	NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Response sensitivity [mT]	2.8
Travel speed [m/s]	> 10

Accuracy / deviations

Hysteresis [mm]	1.5
Repeatability [mm]	< 0.2

Operating conditions

Ambient temperature [°C]	-25…85
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	– CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

3694

UL approval

UL Approval no.

C008

Mechanical data

Weight [g]	9.8
Mounting	flush mountable
Cylinder type	C-slot cylinders
Dimensions [mm]	26.1 x 2.8 x 5.5
Materials	housing: PA; fastening clamp: stainless steel

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

Connection	Cable: 0.3 m, PUR
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit

MK5308-01_EN-US

Datasheet
EN PDF
