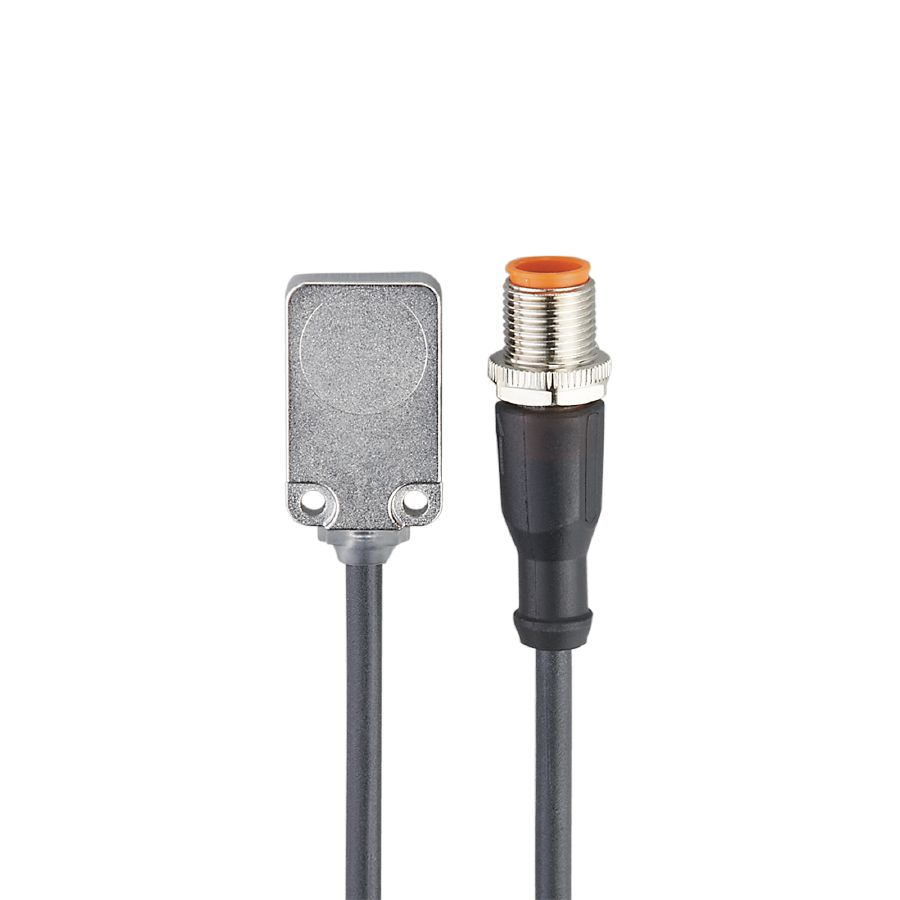

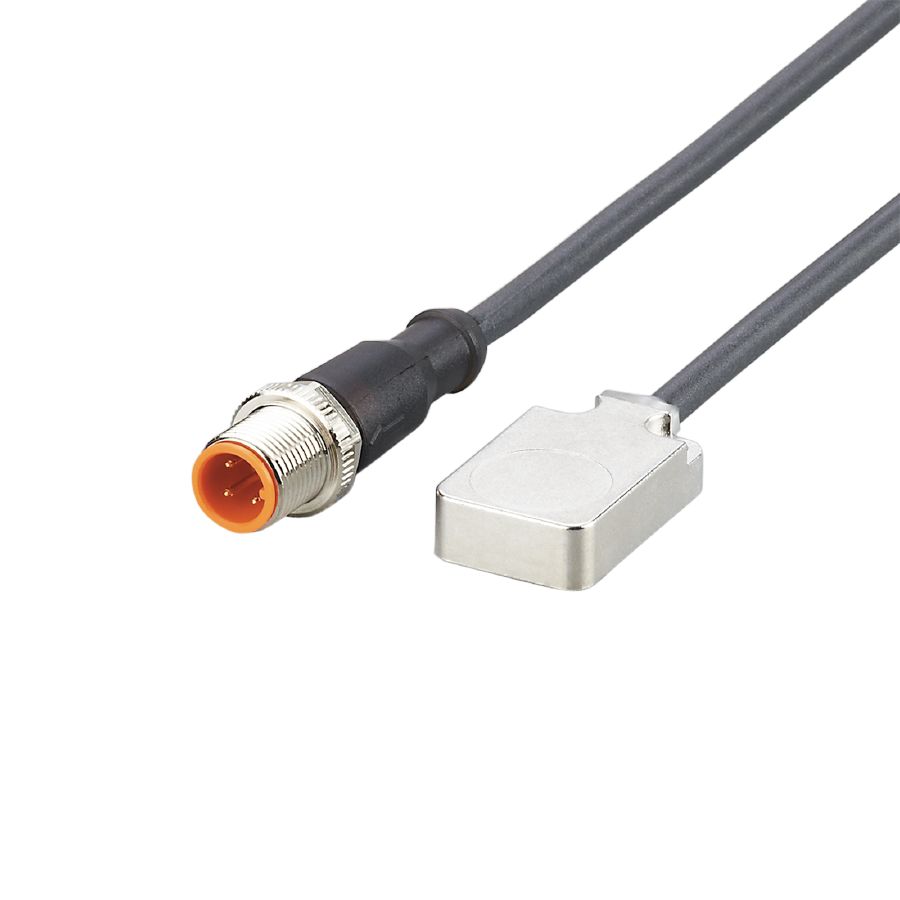

| Product characteristics |
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Sensing range [mm] |
5 |
| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions [mm] |
20 x 8 x 32 |
| Application |
| Media |
ferrous only |
| Electrical data |
| Operating voltage [V] |
10…30 DC |
| Rated insulation voltage [V] |
60 |
| Current consumption [mA] |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 0.3 |
| Outputs |
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Max. leakage current [mA] |
0.1 |
| Permanent current rating of switching output DC [mA] |
100 |
| Short-time current rating of switching output [mA] |
100 |
| Switching frequency DC [Hz] |
200 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Sensing range [mm] |
5 |
| Real sensing range Sr [mm] |
5 ± 10 % |
| Operating distance [mm] |
0…4.05 |
| Accuracy / deviations |
| Correction factor |
steel: 1 |
| Hysteresis [% of Sr] |
< 10 |
| Switch point drift [% of Sr] |
-10…20 |
| Repeatability [% of Sr] |
10 |
| Software / programming |
| Parameter setting options |
hysteresis / window; switch-off delay; switch-on operations; Auto-teach |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
9.6 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
16 |
| device status |
4 |
| binary switching information |
4 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
830 |
|
| Note |
| For further information please see the IODD PDF file under “Downloads” |
|
| Operating conditions |
| Ambient temperature [°C] |
-25…80 |
| Storage temperature [°C] |
-30…85 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10…3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| MTTF [years] |
1976 |
| UL approval |
| Ta |
-25…60 °C |
| Enclosure type |
Type 1 |
| voltage supply |
Limited Voltage/Current |
| UL Approval no. |
C010 |
| File number UL |
E174191 |
|
| Mechanical data |
| Weight [g] |
44.9 |
| Housing |
rectangular |
| Mounting |
flush mountable |
| Dimensions [mm] |
20 x 8 x 32 |
| Materials |
diecast zinc; LED window: TPU; potting: PUR |
| Displays / operating elements |
| Display |
| Display operation |
1 x LED, green |
| switching status |
1 x LED, yellow |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 0.3 m, PUR, Ø 4.9 mm; flame-retardant (IEC 60332-2, UL: FT2) |
| Connection |
Connector: 1 x M12; coding: A; Locking: knurled nut, rotatable |
