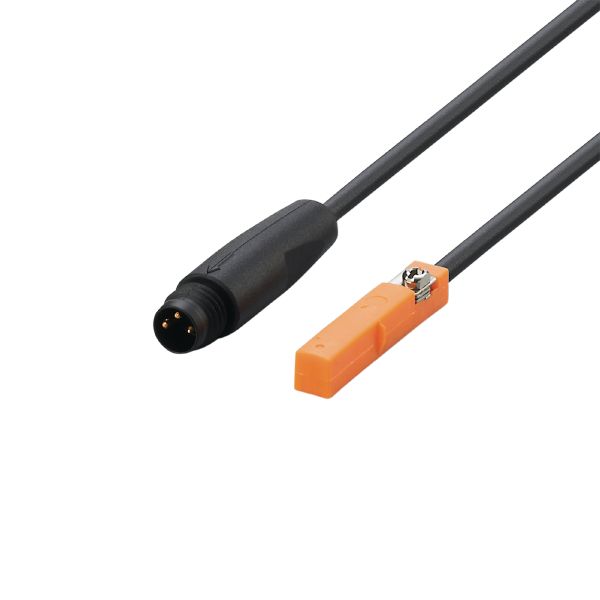

MR0101

  • Self-locking fixture for quick mounting and easy adjustment
  • Easy fit ‘drop from the top’ into a slot
  • Moulded cable ensuring very good strain relief
  • With combined AC/DC output and two-wire technology
  • Very high switching frequency



SKU: MR0101

$27,20

Description

Product characteristics
Electrical design PNP/NPN
Output function normally open
Dimensions [mm] 30.5 x 5 x 6.5
Electrical data
Operating voltage [V] 5…50 AC / 5…60 DC; (UL supply class 2: 5…60 DC / 5…30 AC)
Protection class III
Reverse polarity protection yes
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching output DC [V] 5
Max. voltage drop switching output AC [V] 5
Permanent current rating of switching output AC [mA] 100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.)
Permanent current rating of switching output DC [mA] 100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.)
Switching frequency AC [Hz] 1000
Switching frequency DC [Hz] 1000
Max. switching power [W] 10
Short-circuit protection no
Short-circuit proof no
Overload protection no
Detection zone
Response sensitivity [mT] 2.1
Travel speed [m/s] 10
Accuracy / deviations
Hysteresis [mm] 1
Repeatability [mm] -0.2…0.2
Response times
Max. fall time [ms] 0.1
Max. make time incl. bounce [ms] 0.6
Operating conditions
Ambient temperature [°C] -25…70
Protection IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD – CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 1 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF [years] 11303
UL approval
UL Approval no. C004
Mechanical data
Weight [g] 12
Mounting flush mountable
Cylinder type T-slot cylinders
Dimensions [mm] 30.5 x 5 x 6.5
Materials housing: PA; fastening clamp: stainless steel
Switching cycles when connected to PLC [Mio] < 40
Displays / operating elements
Display
switching status 1 x LED, yellow
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Remarks
Remarks
No LED function in case of polarity reversal in DC operation.
operating voltage “supply class 2” according to UL
Pack quantity 1 pcs.
Electrical connection – plug
Cable: 0.3 m, PUR
Connector: 1 x M8; coding: A; Locking: snap-fit
