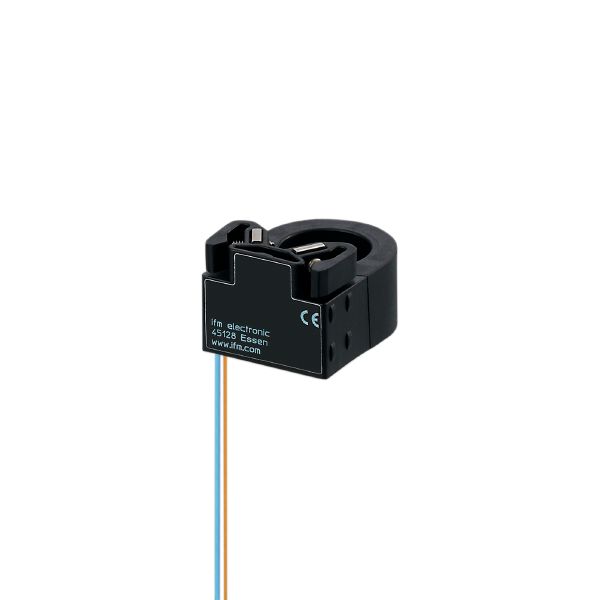

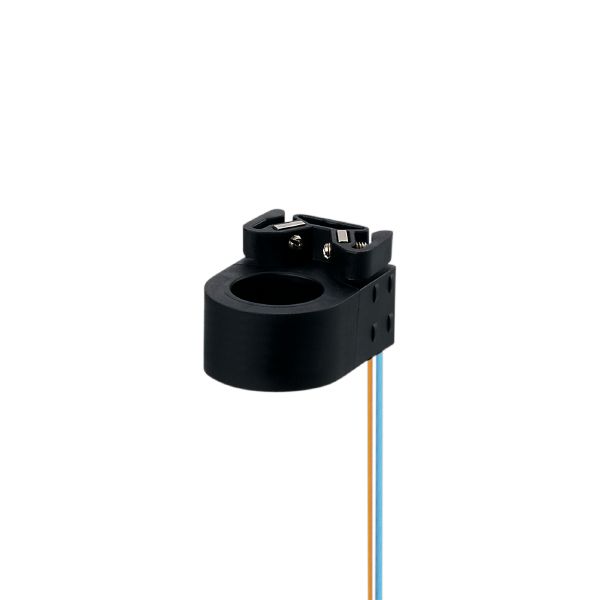

N7R30A

N7R30A - Image 2

N7R30A - Image 3

N7R30A

For applications in hazardous areas
Reliable detection of objects with very small diameters
Very short response time
Wide operating temperature range

SKU: N7R30A

$83,40

Description

Product characteristics

Electrical design	NAMUR
Output function	normally closed
Housing	circular
Dimensions [mm]	32 x 25 x 20

Electrical data

Connection to switching amplifiers	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Current consumption [mA]	< 1.2; (disabled; conductive: > 2,1)
Protection class	III

Outputs

Electrical design	NAMUR
Output function	normally closed

Detection zone

Measuring ball (diameter) [mm]	6
Max. travel speed [m/s]	25

Accuracy / deviations

Hysteresis [mm]	1

Operating conditions

Ambient temperature [°C]

-40…100

Note on ambient temperature

max. temperature span: 100 K

Protection

IP 67

Tests / approvals

Approval

BVS 08 ATEX E026; IECEx BVS 09.0016

ATEX marking

II 1G Ex ia IIC T4 Ga

II 1D Ex ia IIIC T125°C Da

EMC

EN 60947-5-2

MTTF [years]

3318

Safety classification

Max. internal capacitance [nF]	150
Max. internal inductance [µH]	100

Mechanical data

Weight [g]	66.7
Housing	circular
Dimensions [mm]	32 x 25 x 20
Inside diameter [mm]	15
Materials	PA 12-GF30

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m; 2 x 0.14 mm², PTFE

N7R30A-00_EN-US

Datasheet
EN PDF
