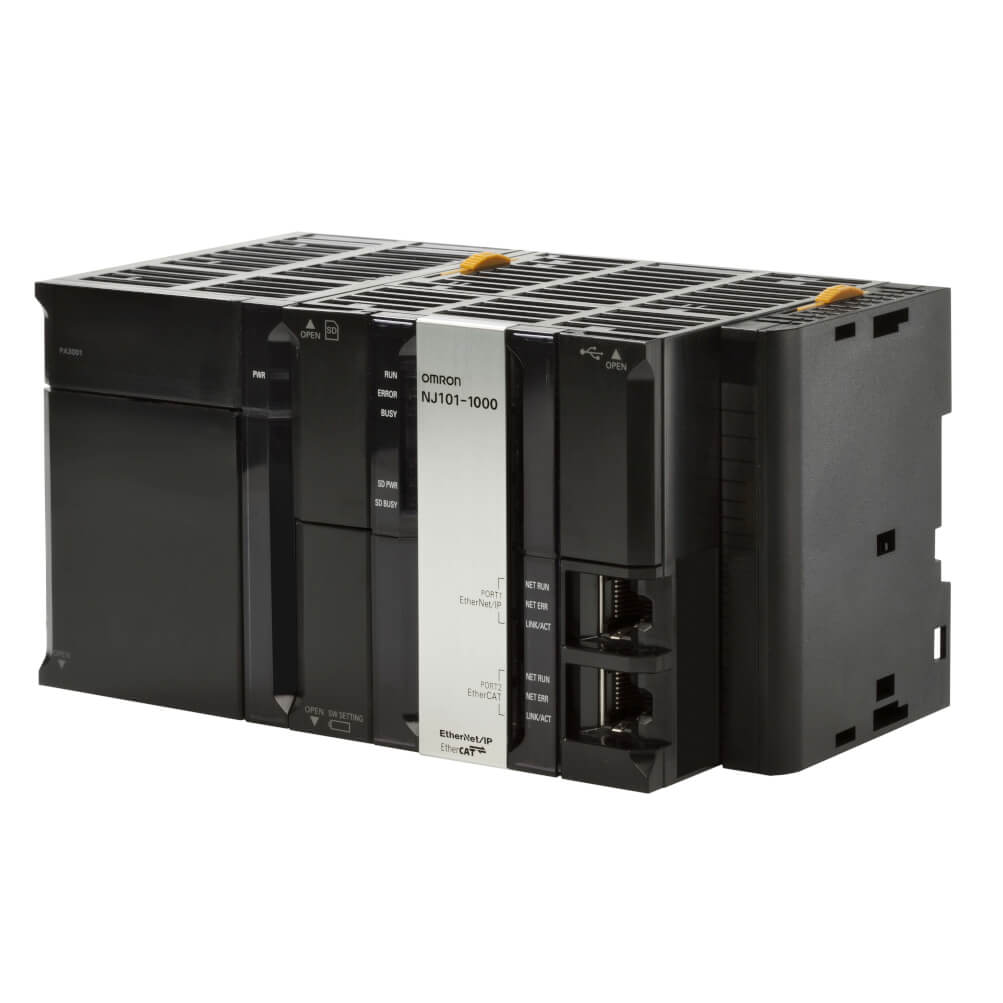

NJ101-1000

Sysmac NJ1 CPU, 3MB memory, built-in EtherCAT (2 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP

SKU: NJ101-1000
ID:1588751

Description

Controller functionality Motion control, Sequence control
Max. number of synchronous axes 2
Max. number of axes (incl. virtual) 6
Primary task cycle time 1 ms
Program memory 3 MB
Variables memory 0.5 MB
Communication port(s) EtherCAT Master, EtherNet/IP, USB
Communication option(s) CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Max. number of remote I/O nodes 64
I/O system CJ I/O Bus
Max. number of expansion units 40
Product Weight (unpacked) 627 g



Accessories

GX-JC03 3-port EtherCAT Junction module, 24 VDC power supply



GX-JC06 6-port EtherCAT Junction module, 24 VDC power supply



GX-JC06-H 6-port EtherCAT Junction module, 24 VDC power supply, with node switches



HMC-SD492 4 GB SD memory card



NJ-PA3001 Sysmac NJ power supply unit, 100-240 VAC, 30 W, “RUN” output relay



NJ-PD3001 Sysmac NJ power supply unit, 24 VDC, 30 W, “RUN” output relay



W4S1-05D 5-port enhanced Ethernet switch





Spare parts

CJ1W-BAT01 Battery for CJ1M PLCs



CJ1W-TER01 End plate for CJ1 CPU rack or expansion rack. Only required as spare part.
