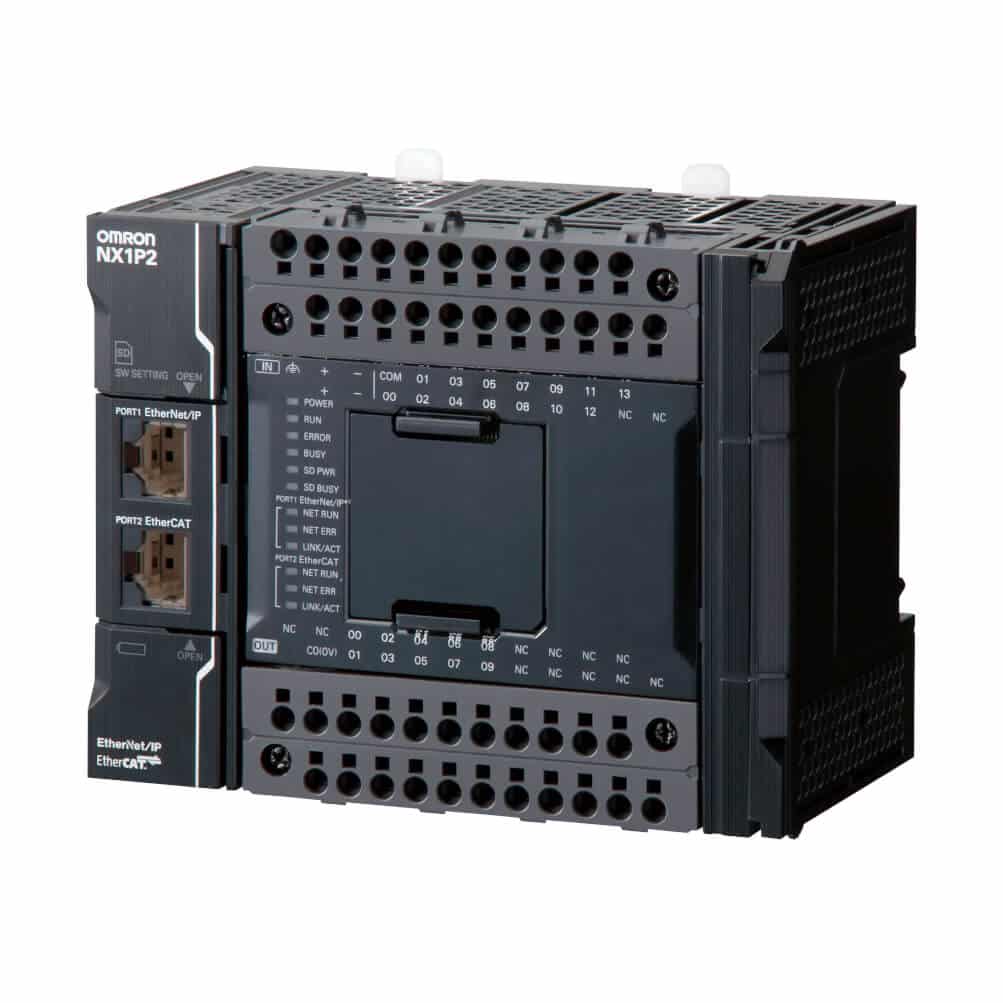

NX1P2-9024DT1

Sysmac NX1P CPU with 24 Digital Transistor I/O (PNP), 1.5 MB memory, EtherCAT (0 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 1 serial option port



SKU: NX1P2-9024DT1
ID:1588042

Description

Primary task cycle time 2 ms
Program memory 1.5 MB
Variables memory 2 MB
Max. number of synchronous axes 0
Max. number of PTP axes 4
Number of digital inputs 14
Input type PNP/NPN
Number of digital outputs 10
Output type PNP
Number of serial option boards 1
Max. number of expansion units 8
Max. number of remote I/O nodes 16
Communication port(s) EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Number of Ethernet ports 2
Number of USB ports 0
Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485
Real-time clock ✔️
Supply voltage DC 20.4-28.8 V
Product Height (unpacked) 100 mm
Product Width (unpacked) 124 mm
Product Depth (unpacked) 71 mm
Product Weight (unpacked) 590 g



Accessories

CJ1W-BAT01 Battery for CJ1M PLCs



GX-JC03 3-port EtherCAT Junction module, 24 VDC power supply



GX-JC06 6-port EtherCAT Junction module, 24 VDC power supply



GX-JC06-H 6-port EtherCAT Junction module, 24 VDC power supply, with node switches



HMC-SD492 4 GB SD memory card



NX-PF0730 NX I/O power feed unit, 5-24 V DC input, 8 terminals, 10A, screwless push-in connector, 12mm wide



NX1W-ADB21 Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000



NX1W-CIF01 Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board



NX1W-CIF11 Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board



NX1W-CIF12 Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board



NX1W-DAB21V Sysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000



NX1W-MAB221 Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000



SYSMAC-SE201L Sysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately)



W4S1-05D 5-port enhanced Ethernet switch



XS6W-6LSZH8SS100CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m



XS6W-6LSZH8SS200CM-B Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m



XS6W-6LSZH8SS200CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m



XS6W-6LSZH8SS20CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m



XS6W-6LSZH8SS500CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m



XS6W-6LSZH8SS50CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m





Spare parts

NX-END02 Spare part – End plate for NX1P controller





CSM_NX1P_P116-E1_9_6

Datasheet
EN PDF
