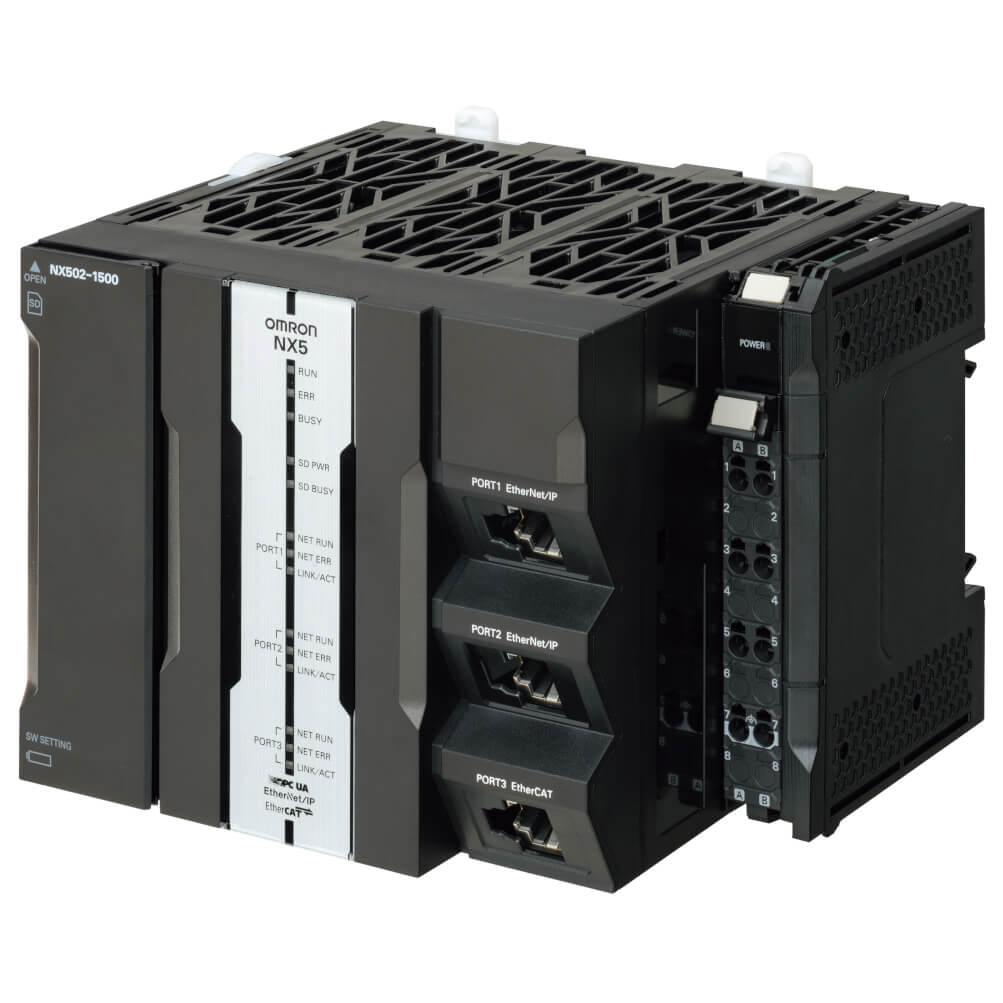

Sysmac NX5 CPU with SQL Database Connectivity, 80 MB program and 260 MB data memory, built-in EtherCAT (16 servo axes, in total 256 EtherCAT nodes) and 2 Ethernet ports (OPC-UA and EtherNet/IP)
| Controller functionality | DB connection, Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.250 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 16 |
| Max. number of axes (incl. virtual) | 32 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | EtherCAT Slave, Ethernet TCP/IP, IO-Link, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 256 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 63 |
 |
CJ1W-BAT01 | Battery for CJ1M PLCs |
|
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
|
 |
NX-EIP201 | Expansion EtherNet/IP unit, connects to Left hand side of CPU |
|
 |
W4S1-05D | 5-port enhanced Ethernet switch |
|
