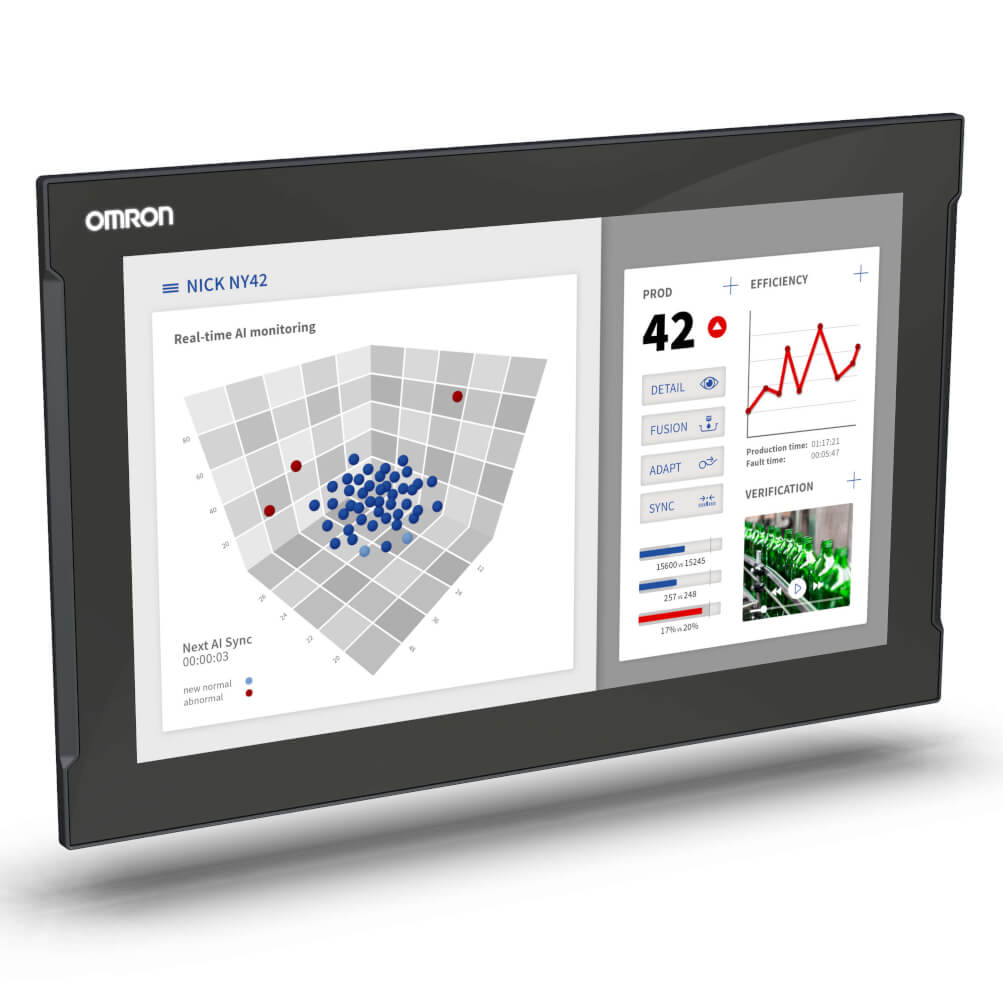

NYP27-30000-19WC1000

Industrial Panel PC with Intel® Core™ i7-7820EQ, 8 GB DRAM (non-ECC), No Storage, No OS, No exp. slots, No I/F option, 18.5″ (1920×1080) display with capacitive touchscreen, build-in type



SKU: NYP27-30000-19WC1000
ID:1582401

Description

Screen diagonal 18.5 in
Max. number of motion axes 0 axes
Processor family Intel® Core™ i7
Processor specification 7820EQ (3.0 GHz)
Cooling method Active cooling (fan)
Memory 8 GB RAM (non ECC)
Storage No Storage
Operating system No OS
Expansion slot No Expansion
Modular port No Port
Communication port(s) EtherNet/IP, Ethernet TCP/IP, USB
Video output DVI-I
Material housing Aluminium, black
Display ratio 16:9
Number of pixels, horizontal 1920
Number of pixels, vertical 1080
Type of display TFT
Touchscreen technology Projected capacitive
Mounting method Build-in
Degree of protection (IP), front side IP65
Operating temperature 0-55 °C
Supply voltage DC 20.4-28.8 V
Height of the front 303 mm
Width of the front 481 mm
Height of panel cutout 285 mm
Width of panel cutout 463 mm
Built-in depth 79 mm
Product Weight (unpacked) 7200 g



Accessories

FH-VUAB 2M Vision system accessory FH USB cable touch panel 2 m



FH-VUAB 5M Vision system accessory FH USB cable touch panel 5 m



NY000-AC00 2M DVI cable 2 m



NY000-AC00 5M DVI cable 5 m



NYM12W-C1000 Industrial Monitor, 12.1″ display with capacitive touchscreen, Build-in mounting, DVI-D port



NYM15W-C1000 Industrial Monitor, 15.4″ display with capacitive touchscreen, Build-in mounting, DVI-D port



NYM109W-C100 Industrial Monitor, 18.5″ display with capacitive touchscreen, Build-in mounting, DVI-D port



S8BA-24D24D240LF UPS, DIN rail type, DC-DC, 10A, 240W



S8BW-C02 UPS Connection cable (CONTACT)





Spare parts

NY000-AK00 Spare part accessory kit (connectors, drive bracket, screws, etc)





CSM_NYP_DS_E_5_3

Datasheet
EN PDF
