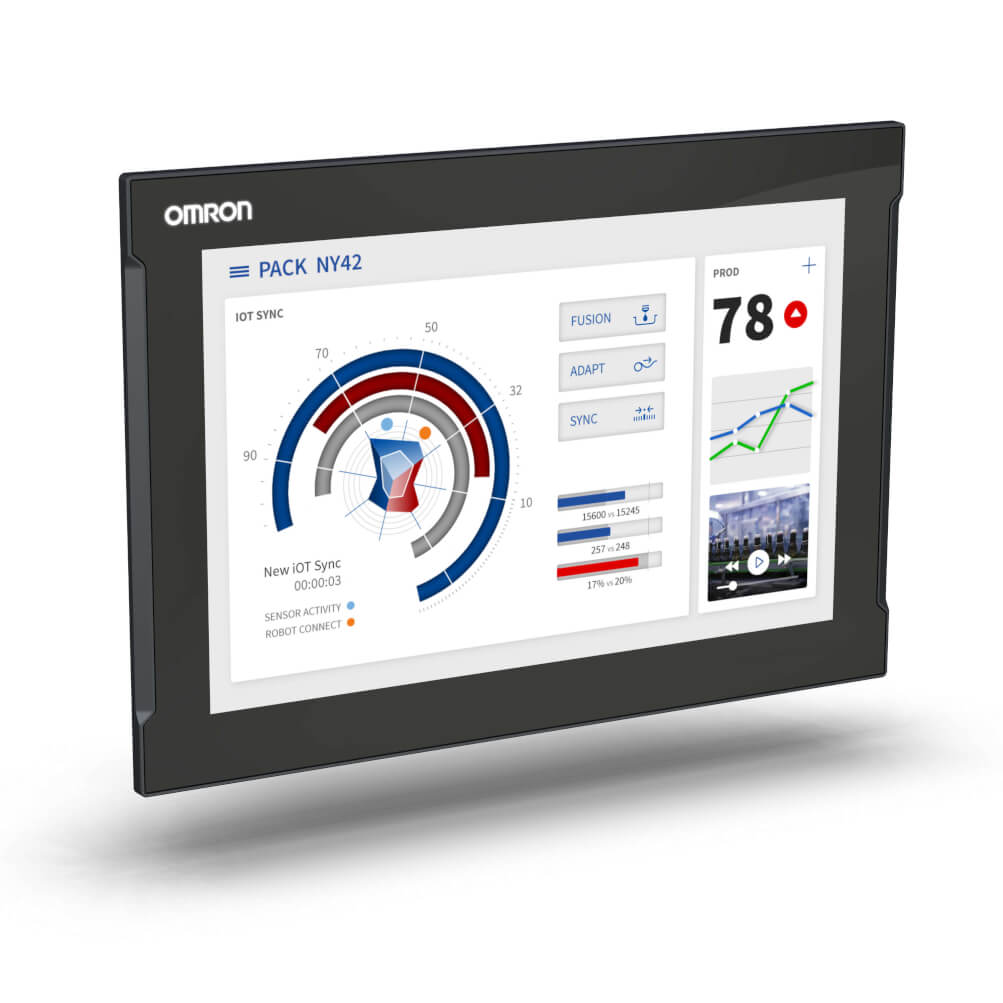

Industrial Panel PC with Intel® Core™ i5-7300U, 8 GB DRAM (non-ECC), 128 GB SSD iMLC, WIN 10 IoT 2019 (64-bit), 1 PCIe + 2 drive slots, NY Monitor Link, 15.4″ (1280×800) display with capacitive touchscreen, build-in type
| Screen diagonal | 15.4 in |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Core™ i5 |
| Processor specification | 7300U (2.6 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 128 GB SSD MLC |
| Operating system | Windows 10 IoT Enterprise 2019 LTSB – 64 bit |
| Expansion slot | 1 x PCIe slot (X2 lanes) |
| Modular port | NYML |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-I |
| Material housing | Aluminium, black |
| Display ratio | 16:10 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 97 mm |
| Product Weight (unpacked) | 6600 g |
 |
FH-VUAB 2M | Vision system accessory FH USB cable touch panel 2 m |
|
|
FH-VUAB 5M | Vision system accessory FH USB cable touch panel 5 m |
|
 |
NY000-AC00 2M | DVI cable 2 m |
|
|
|
NY000-AC00 5M | DVI cable 5 m |
|
 |
NYM12W-C1000 | Industrial Monitor, 12.1″ display with capacitive touchscreen, Build-in mounting, DVI-D port |
|
 |
NYM15W-C1000 | Industrial Monitor, 15.4″ display with capacitive touchscreen, Build-in mounting, DVI-D port |
|
 |
NYM19W-C1000 | Industrial Monitor, 18.5″ display with capacitive touchscreen, Build-in mounting, DVI-D port |
|
 |
S8BA-24D24D240LF | UPS, DIN rail type, DC-DC, 10A, 240W |
|
 |
S8BW-C02 | UPS Connection cable (CONTACT) |
|
 |
NY000-AK00 | Spare part accessory kit (connectors, drive bracket, screws, etc) |
|
Datasheet
EN PDF
