Product characteristics
| Type of light |
white light; infrared light |
Application
| Illuminated field [mm] |
130 x 130 |
| Design |

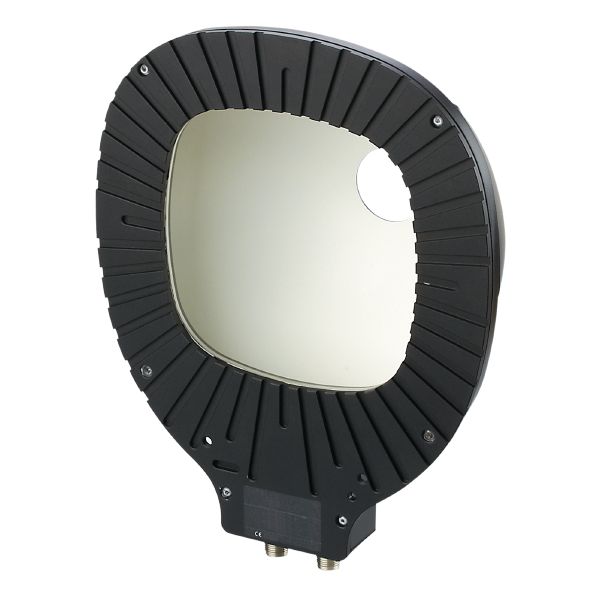

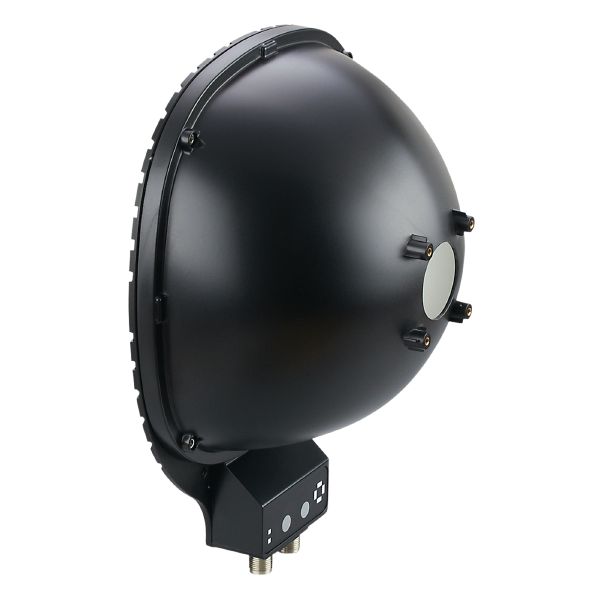

Dome |
| Type of operation |
normal light intensity (permanent operation possible); High light intensity (pulsed) |
Electrical data
| Operating voltage [V] |
24 DC |
| Current consumption [mA] |
operating mode “permanent operation”: 540; operating mode “high light intensity”: 2580 |
| Protection class |
III; (PELV) |
| Type of light |
white light; infrared light |
Inputs / outputs
| Number of inputs and outputs |
Number of digital inputs: 1 |
Inputs
| Trigger |
24 V PNP/NPN; external |
| Number of digital inputs |
1 |
Operating conditions
| Ambient temperature [°C] |
-10…40 |
| Storage temperature [°C] |
-20…60 |
| Protection |
IP 65 |
Tests / approvals
| Photobiological safety |
risk group 1; (DIN EN 62471) |
Mechanical data
| Weight [g] |
1018.15 |
| Dimensions [mm] |
256.8 x 197 x 106.8 |
| Materials |
housing: aluminium black anodised; Cover: ABS |
| Tightening torque [Nm] |
0.5…1.5 |
Displays / operating elements
| Display |
| operation |
1 x LED, green |
| operating mode “high light intensity” |
1 x LED, red |
| LED segment |
1 x LED, white |
|
Electrical connection – parameter setting
|
Connector: M12; coding: A |
Electrical connection – power supply
|
Connector: M12; coding: A |
