$148,00
| Type of light | red light |
|---|---|
| Housing | rectangular |
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
| Operating voltage [V] | 10…36 DC |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |

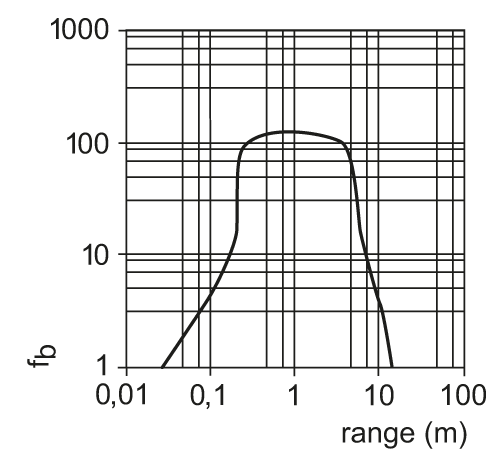

| Range referred to prismatic reflector [m] | 0.075…10; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 250 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
| Ambient temperature [°C] | -25…60 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 435 |
| Weight [g] | 142.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 56 x 18.2 x 46.8 | |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU | |
| Lens material |
|
|
| Lens alignment | side lens |
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 2 m, PUR; 3 x 0.34 mm² |
|---|
Datasheet
EN PDF
