$139,40
| Type of light | red light |
|---|---|
| Housing | rectangular |
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | 22; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 633 |
| Electrical design | NPN |
|---|---|
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Range [mm] | 2…200; (white paper 200 x 200 mm) |
|---|---|
| Range on white object (90 % remission) [mm] | 2…200 |
| Range on grey object (18 % remission) [mm] | 4…200 |
| Range on black object (6 % remission) [mm] | 8…200 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 8 |
| Light spot dimensions refer to | at maximum range |

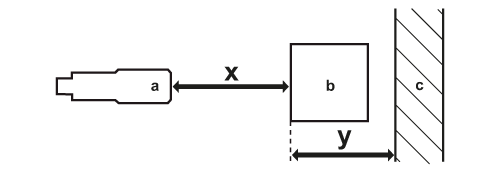

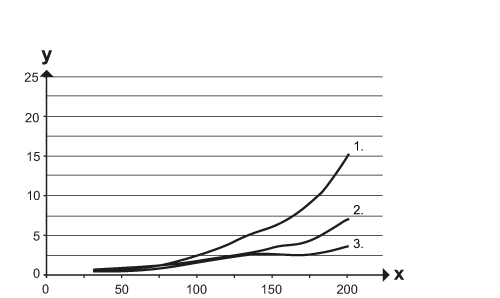

| Background suppression available | yes |
| Ambient temperature [°C] | -25…80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 708 | ||
| UL approval |
|
| Weight [g] | 51.3 | |
|---|---|---|
| Housing | rectangular | |
| Materials | housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM | |
| Lens material |
|
|
| Lens alignment | side lens | |
| Tightening torque [Nm] | 1; (screws) |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 0.3 m, PVC; 3 x 0.25 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
|
|
|
|---|
|
|
|
|---|
Datasheet
EN PDF
