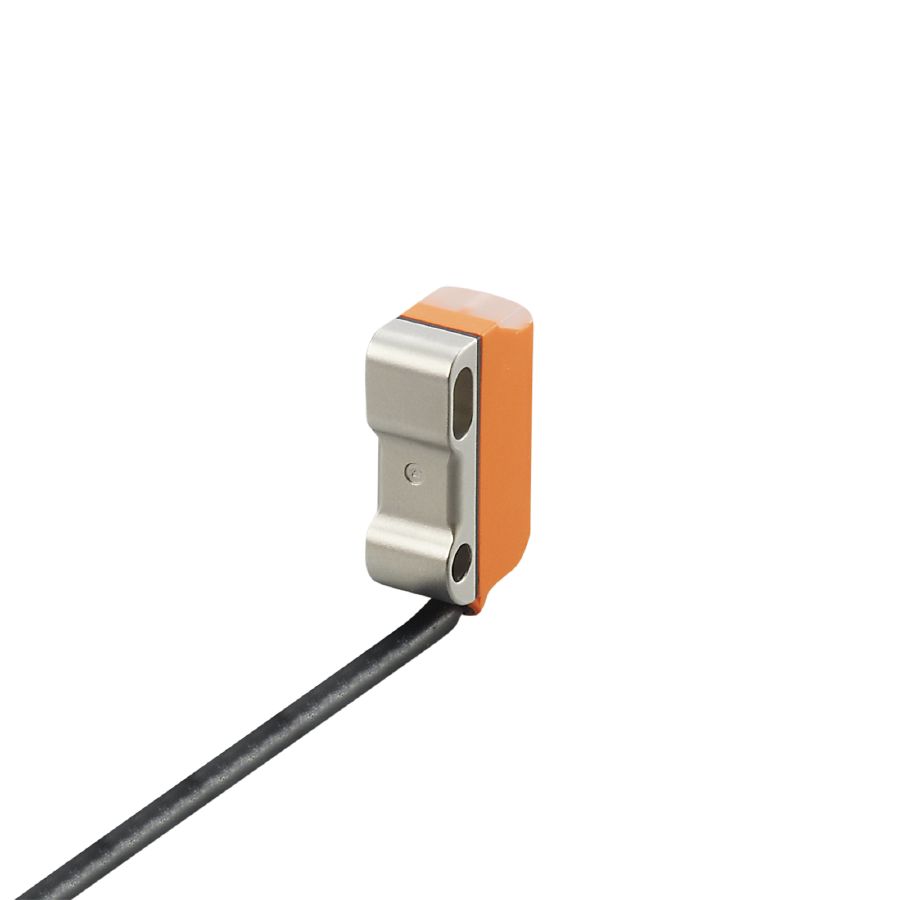

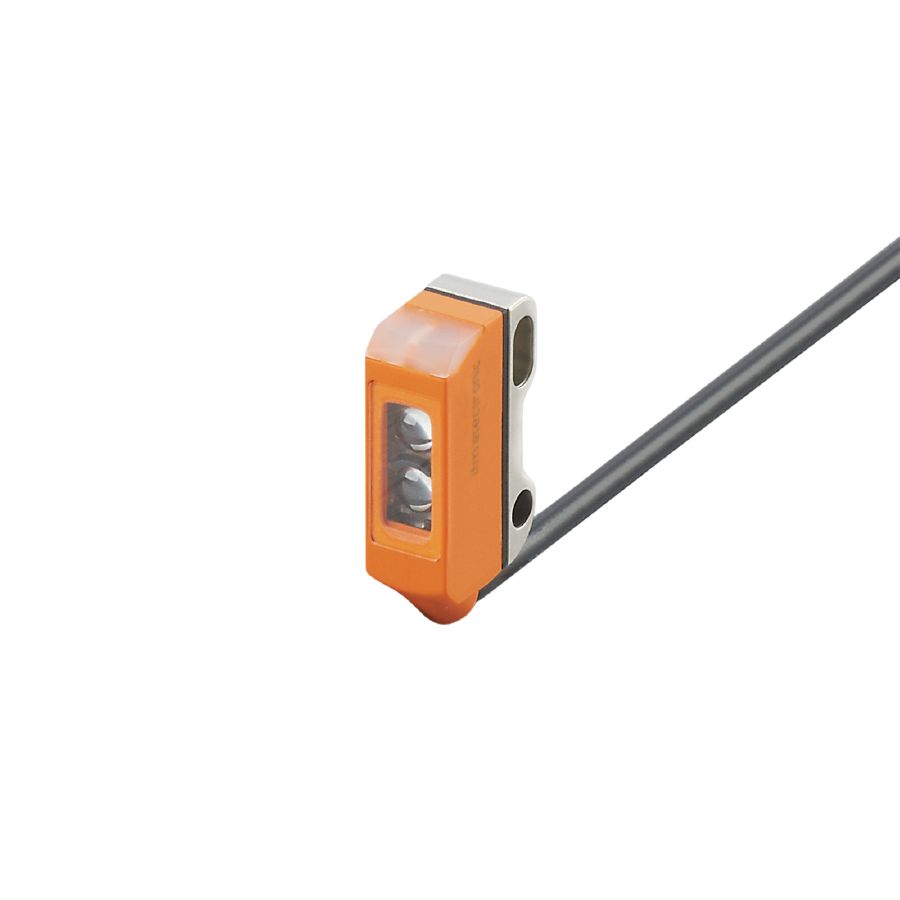

O8E201

  • Particularly small housing for use where space is restricted
  • For the reliable position detection in feeding and handling technology
  • Precise detection of very small, very flat or highly reflective components
  • Ready for operation immediately thanks to fixed setting
  • Very long range



SKU: O8E201

$74,00

Description

Product characteristics
Type of light red light
Housing rectangular
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] 15; ((24 V))
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 633
Outputs
Electrical design NPN
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Detection zone
Transmitter / receiver receiver
Range [m] < 3
Operating conditions
Ambient temperature [°C] -25…60
Protection IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1152
UL approval
Ta -25…60 °C
Enclosure type Type 1
power supply Limited Voltage/Current
UL Approval no. E014
File number UL E174191
Mechanical data
Weight [g] 38
Housing rectangular
Dimensions [mm] 28.1 x 8.1 x 14.4
Materials housing: ABS; stainless steel (1.4404 / 316L)
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²

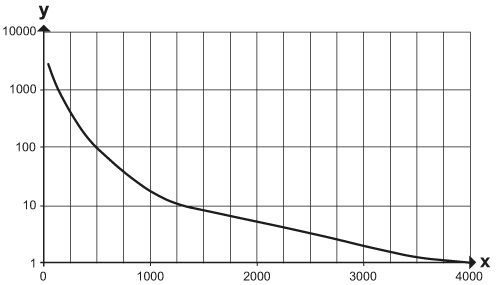

Diagrams and graphs


x: distance [mm]
y: excess gain factor



O8E201

Datasheet
EN PDF
