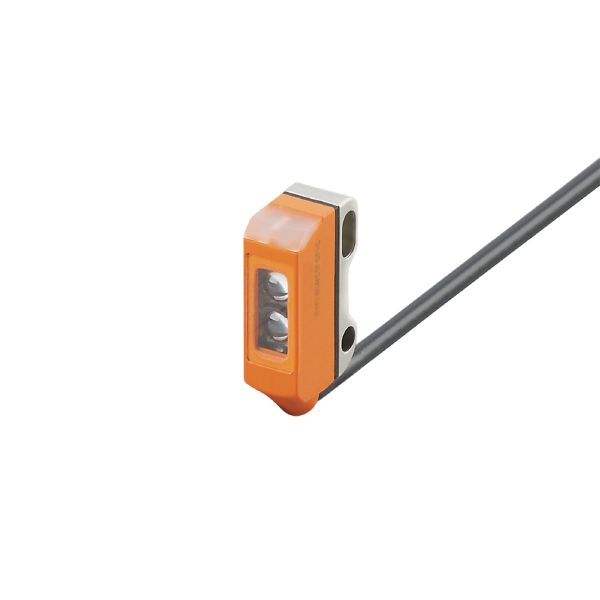

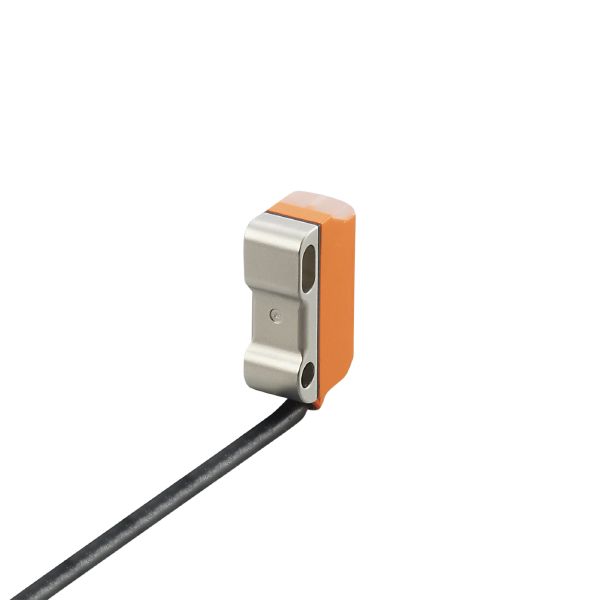

O8H270

Description

Product characteristics

Type of light	red light
Housing	rectangular

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10…30 DC
Current consumption [mA]	20; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	1…80; (white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	1…80
Range on grey object (18 % remission) [mm]	3…76
Range on black object (6 % remission) [mm]	5…74
Setting range [mm]	10…80
Range adjustable	yes
Max. light spot diameter [mm]	4
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable

SIO mode

yes

Required master port type

Min. process cycle time [ms]

IO-Link process data (cyclical)

function	bit length
process value	32
device status	4
binary switching information	1

IO-Link functions (acyclical)

application specific tag; operating hours counter; switching cycles counter

Supported DeviceIDs

Type of operation	DeviceID
Default	1117

Operating conditions

Ambient temperature [°C]	-25…60
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

756

UL approval

Ta	-25…60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	E016
File number UL	E174191

Mechanical data

Weight [g]

37.3

Housing

rectangular

Dimensions [mm]

28.1 x 8.1 x 14.4

Materials

housing: ABS; stainless steel (1.4404 / 316L)

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.08 mm²

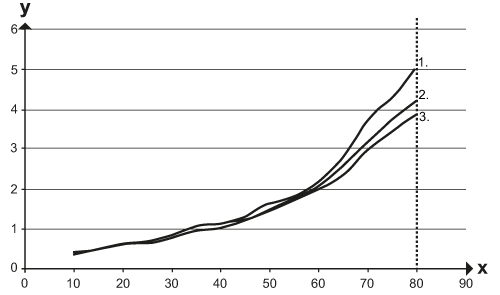

Diagrams and graphs

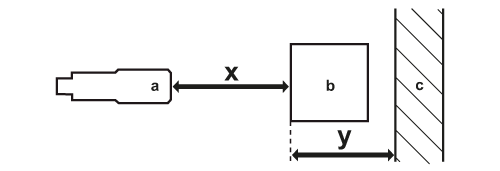

x:	distance sensor/object [mm]
y:	min. distance object/background [mm]
1 =	object black (6 % remission) , $Hintergrund_weiss_90_Remission
2 =	object grey (18 % remission) , $Hintergrund_weiss_90_Remission
3 =	object white (90 % remission) , $Hintergrund_weiss_90_Remission
