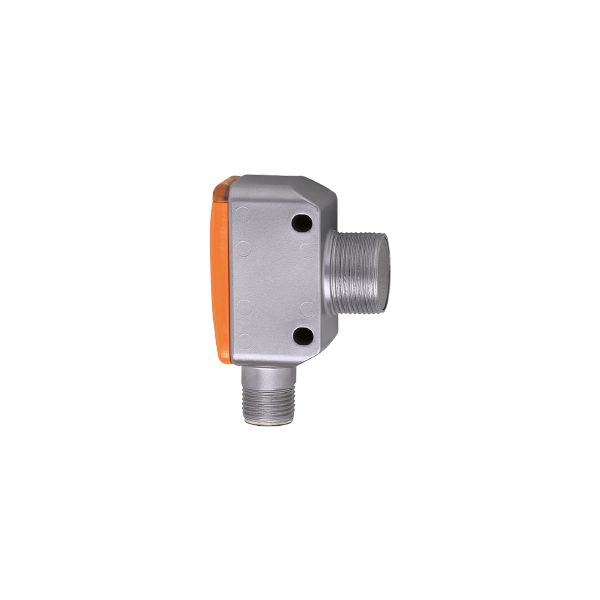

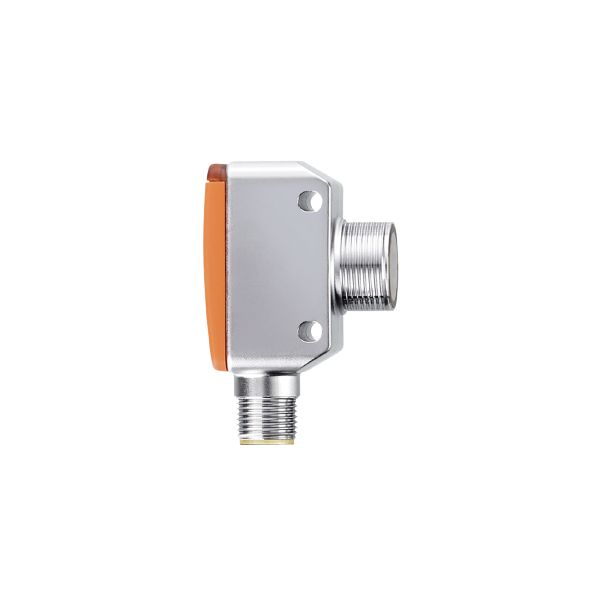

OGS380

  • Robust rectangular stainless steel housing with M18 thread on the side
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High protection rating for the requirements of the food and beverage industry
  • Ready for operation immediately thanks to fixed setting
  • Very long range



SKU: OGS380

$90,80

Description

Product characteristics
Type of light red light
Housing rectangular with M18 thread
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10…30 DC
Rated insulation voltage [V] 32
Current consumption [mA] 17
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 300
Type of light red light
Wave length [nm] 662
Detection zone
Transmitter / receiver transmitter
Range [m] 15
Max. light spot diameter [mm] 800
Light spot dimensions refer to at maximum range
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Device Identification, Device Diagnosis
SIO mode no
Required master port type A
Min. process cycle time [ms] 2.5
IO-Link process data (cyclical)
function bit length
device status 4
IO-Link functions (acyclical) application specific tag; operating hours counter
Supported DeviceIDs
Type of operation DeviceID
Default 1135
Note
For further information please see the IODD PDF file under “Downloads”
Operating conditions
Ambient temperature [°C] -25…80
Storage temperature [°C] -40…80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1011
UL approval
Ta -25…80 °C
Enclosure type Type 1
power supply Class 2
File number UL E174191
Mechanical data
Weight [g] 78
Housing rectangular with M18 thread
Dimensions [mm] 52.9 x 20 x 34.6
Thread designation M18 x 1
Materials 1.4542 (17-4 PH / 630); PEI
Lens material
PEI
Lens alignment side lens
Displays / operating elements
Display
operation 1 x LED, green
Accessories
Items supplied
lock nut: 1
Remarks
Remarks
operating voltage “supply class 2” according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
OGS380-01_EN-US

Datasheet
EN PDF
