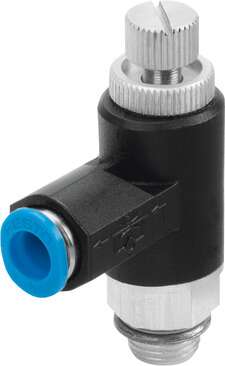

| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G¼ |
| Actuation type | Manual |
| Adjusting element | Knurled screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 650 l/min |
| Standard nominal flow rate in non-return direction | 600 l/min … 750 l/min |
| Ambient temperature | -10 °C … 60 °C |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Mounting position | Any |
| Symbol | 00991452 |
| Operating pressure for entire temperature range | 0.2 bar … 10 bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 1130 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 800 l/min … 1260 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -10 °C … 40 °C |
| Temperature of medium | -10 °C … 60 °C |
| Nominal tightening torque | 11 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Permissible actuation moment, adjusting screw | 0.4 Nm |
| Product weight | 30 g |
| Material of screwed trunnion | Wrought aluminum alloy |
| Note on materials | RoHS-compliant |
| Seals material | NBRTPE-U(PU) |
| Releasing ring material | POM |
| Knurled head material | Wrought aluminum alloy |
| Material of adjusting screw | Brass |
| Swivel joint material | PBT-reinforced |
